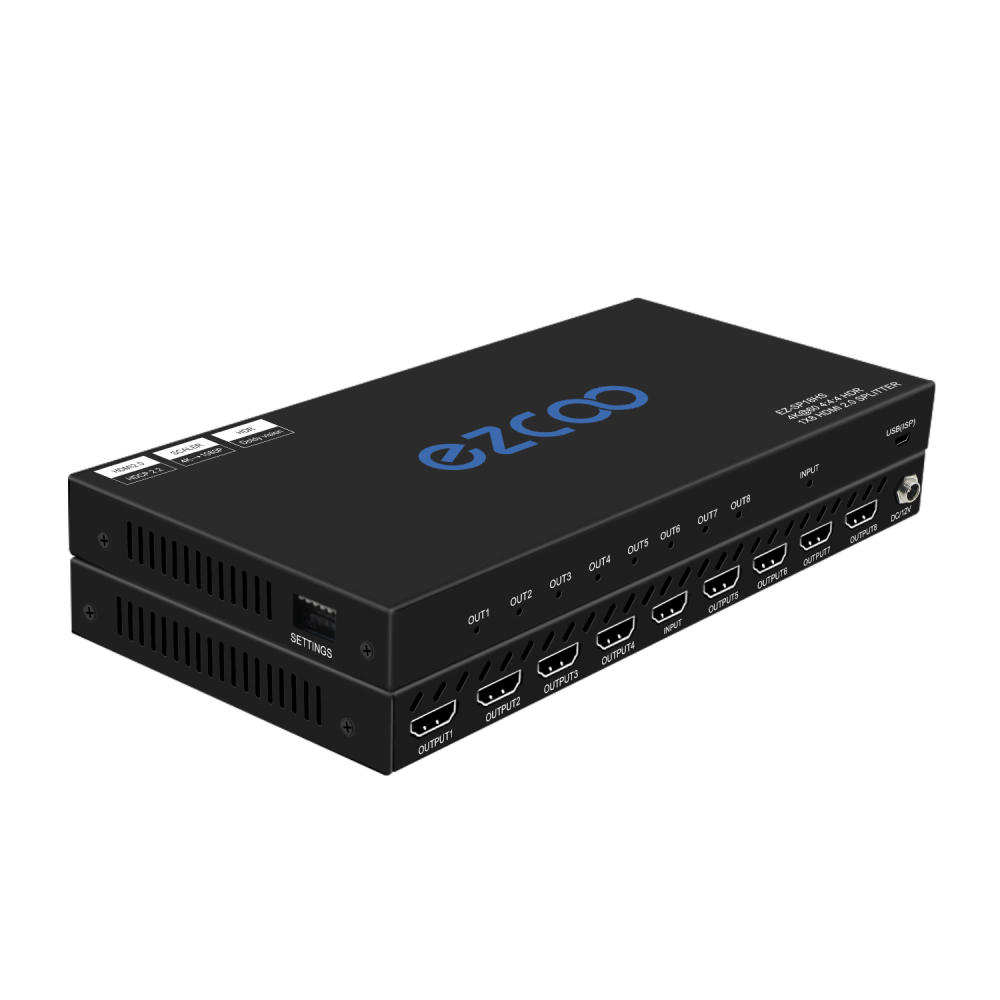

4K60 HDMI Splitter 1 IN 8 OUT,4k Dolby Vision HDR, Scaling output

Model: EZ-SP18HS
HDMI Splitter 1X8  support 4K 60Hz 4:4:4 18G HDR Dolby Vision, HDMI Scaler 4K &1080P work Together,HDCP 2.2  HDMI2.0 Splitter 1 in 8 out
(40 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Technical Information
  • Reviews
EZ-SP18HS is a 1x8 splitter for HDMI with Ultra HD 4K support. This splitter reliably distributes one HDMI source signal to eight HDMI outputs. Especially when you have 4K TV and 1080P TV, each HDMI output can down scaler to 1080P if you have 4K source.
It supports HDMI 2.0 specification features including data rates up to 4K@60Hz 4:4:4 8bit, HDR/Dolby vision and HDCP2.2, Deep Color, 3D, Lip Sync, and HD lossless Audio/Video formats.
It is ideal choice for applications which require the distribution of an HDMI source signal to multiple outputs.
  • Distributes one HDMI source signal to four HDMI displays. It supports  4K and 1080P output simultaneously.
  • Support HDMI 2.0 4K@60Hz 4:4:4 8bit HDR/Dolby vision and HDCP 2.2
  • Support HDMI output down scaler to 1080p, DIP switch setting for each output.
  • Support EDID copy from HDMI output 1 device.
  • Support 3D, Support deep color 30bit, 36bit
  • Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
  • HDMI ports support Dolby Digital/DTS-HD Master Audio/Dolby-AC3/DSD/LPCM/PCM 2.1/5.1/7.1CH Audio, DTS:X, Atoms
  • Support HDMI signal re-timing, never lose quality
  • Support HDMI input up to 15metres AWG26 HDMI 2.0 standard cable length, output up to 25metres AWG24 cable length
  • Plug and Play; No driver required; Installs in minutes
Note: Scaler output don’t support YUV4:2:2 signal. If the source is 4K@60 4:2:2, the LED will flash, and stream out 4K picture.


Technical Information

HDMI video: Uncompressed HDMI 2.0,HDCP 2.2,4K@60Hz 4:4:4 8bit 18Gbps HDR, 4K*2K/1080p/1080i,24bit/30bit,36bit deep color

HDMI audio: Dolby Digital 7.1CH Audio,Dolby Atmos,Dolby TrueHD,DTS:X,DTS-HD Master

HDMI Input cable: HDMI 2.0 standard cable, ≤10m AWG26

HDMI Output cable: HDMI 2.0 standard cable, ≤15m AWG26

Max bandwidth: 600MHz,
Max baud rate: 6Gbps

Power Adapter: Input AC 100V-240V/ 50Hz,60Hz; Output DC 5V/1A

Operating Temperature: -15 to +55℃

Operating Humidity: 5 to 90%RH (No Condensation)

Dimension: 4 x 2.9 x 0.7 in

Weight: 0.75 kg

Package Contents

1x HDMI Splitter

1x Power Adapter

2x Mounting Ear

1x Hook&Loop

1x User Manual

2x Reusable Cable Tie
