OVERVIEW

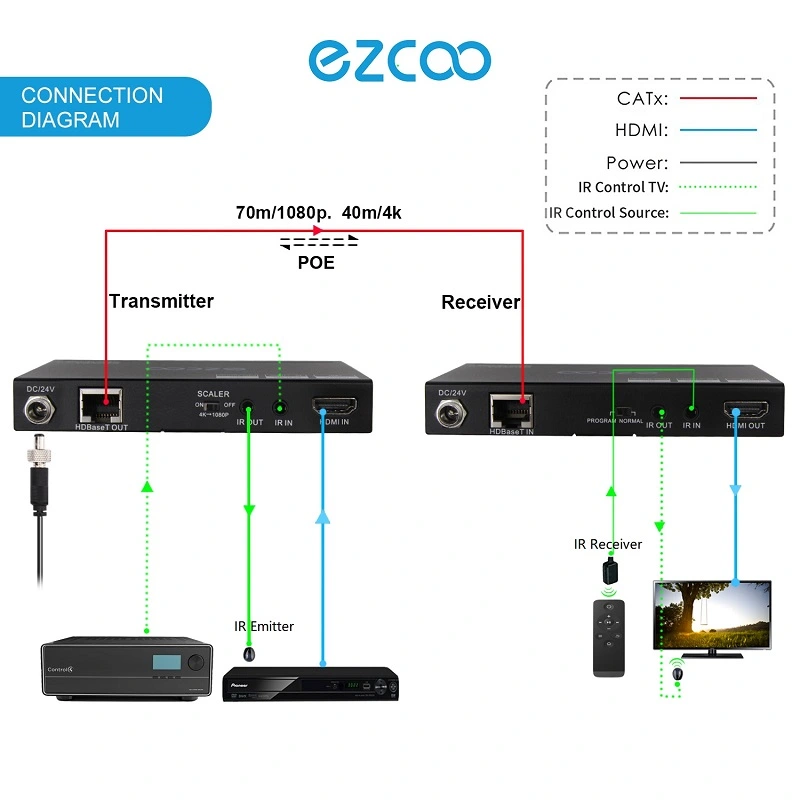

HDBT Extender EZ-EX70H2L supports uncompressed HDMI 2.0 4K@60Hz 4:4:4 8bit, HDR, HDCP2.2; Supports bi-directional PoE, bi-directional IR. HDMI output supports down scaler, output 4K and 1080P resolution simultaneously. It provides distribution of uncompressed 3840 x 2160@60Hz 4:4:4 video, and Two-way IR up to 40m/130ft over a single Cat6a/7 cable; For 1080p@60Hz, it reaches up to 70/230ft over a single Cat5/6a cable.
FEATURES
- Extend UHD HDMI signal to remote HDMI display up to 230ft/70m.
- Supports HDMI 2.0 4K@60Hz 4:4:4 8bit, HDR,HDCP 2.2
- HDMI output down scaler to 1080p, EDID pass through

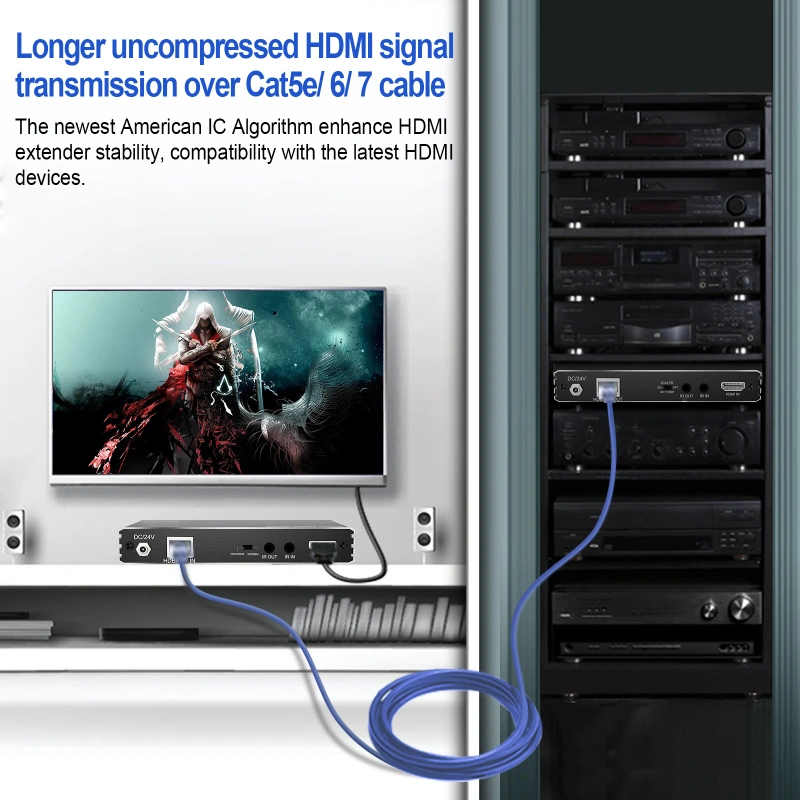

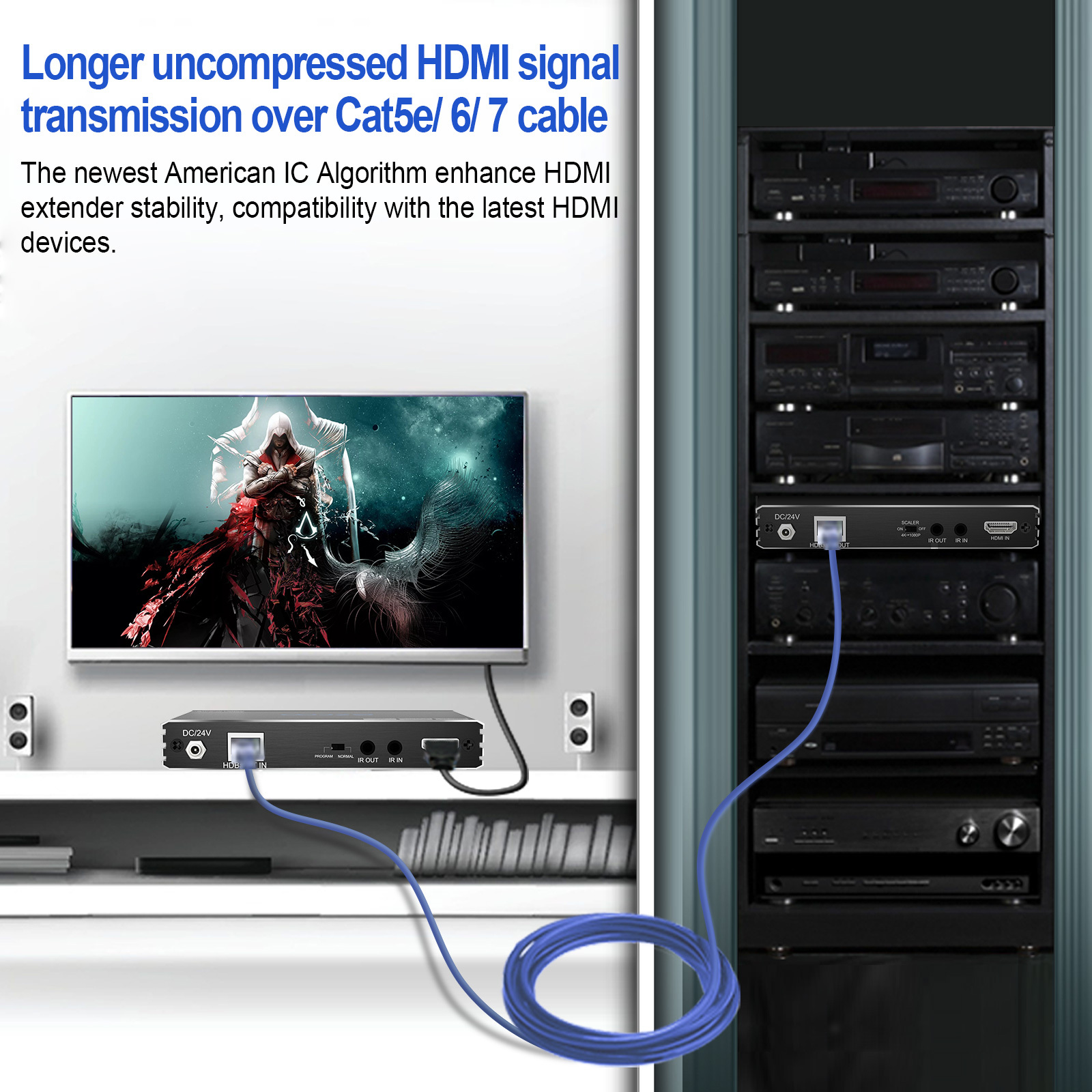

- Supports HDMI 4K@60Hz 4:4:4 8bit, HDR up to 130ft/40m, 1080P@60Hz up to 230ft/70m via Cat5e/6a/7 cable.
- Support 3D, Support deep color 30bit, 36bit
- Supports Blue-Ray 24/50/60fs/HD-DVD/xvYCC
- Supports HDMI signal re-timing, never lose quality
- Supports HDMI input up to 10metres AWG26 HDMI 2.0 standard cable length, output up to 15metres AWG24 cable length.
- Supports bi-directional PoE, one power adapter powers on TX and RX; Either TX powers on RX, or RX powers on TX .

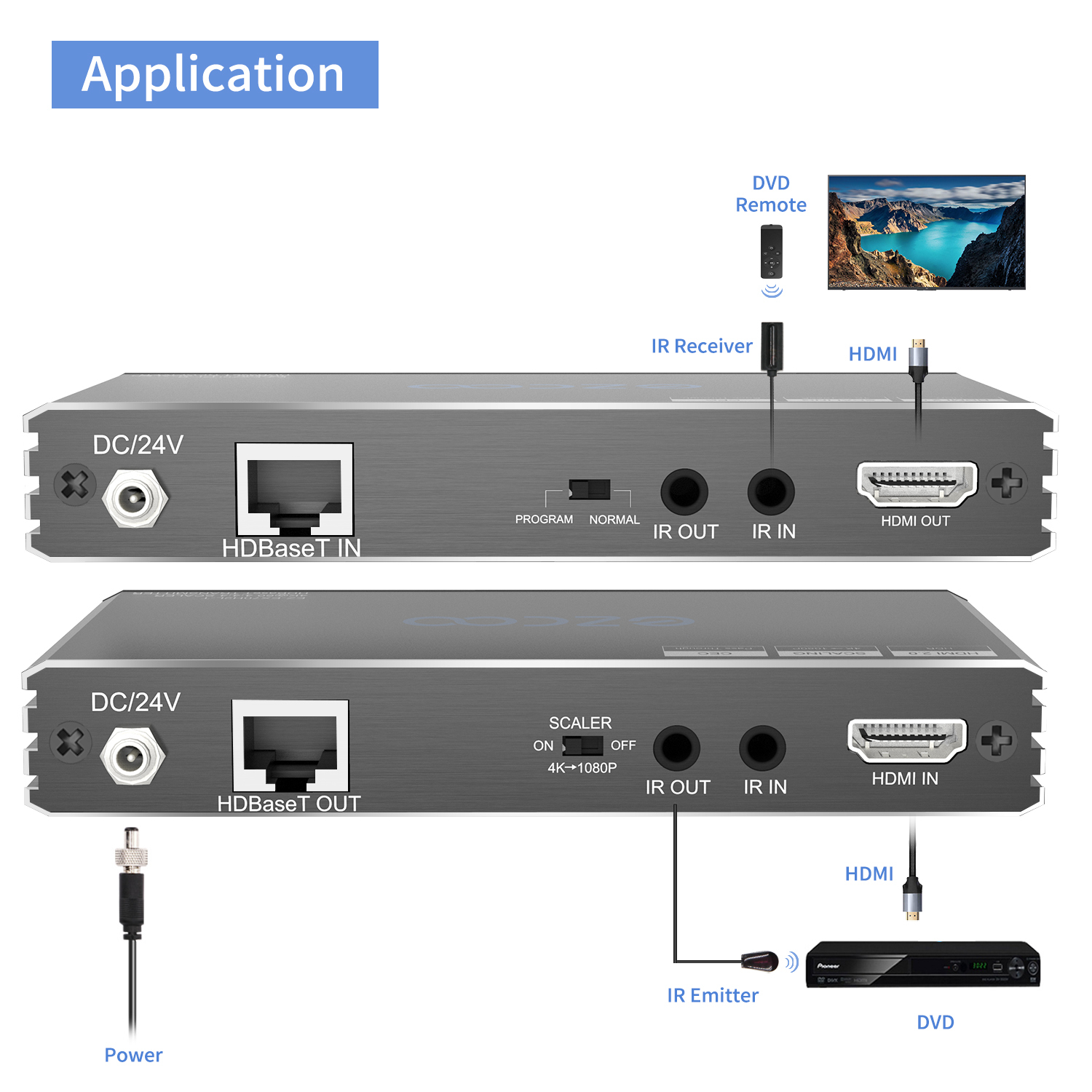

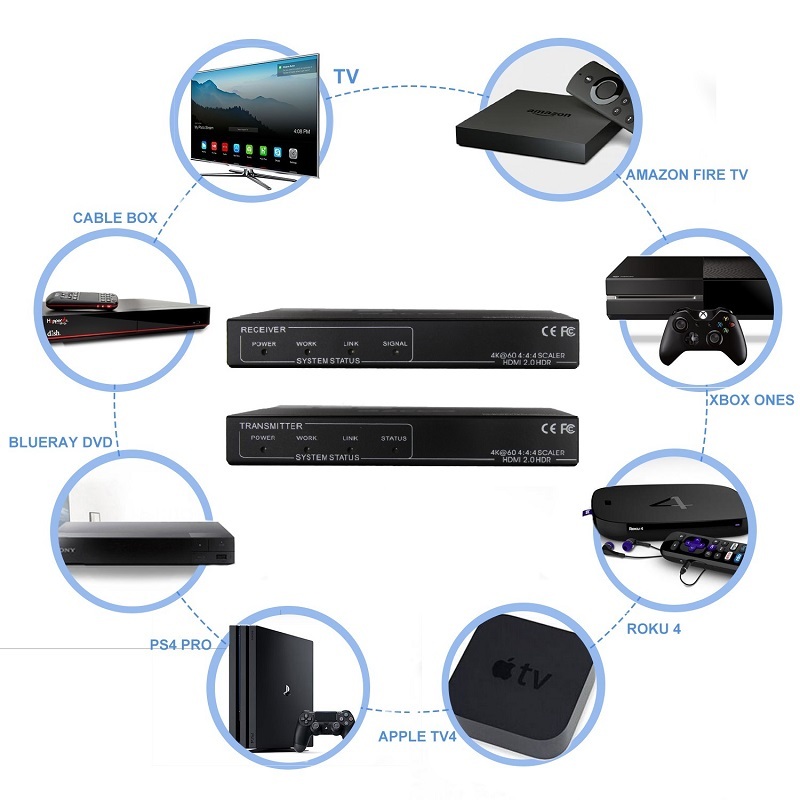

- Supports bi-directional IR, either TV controls Blue-ray DVD, or DVD controls TV via IR remote; So easy to set up control system.
- Dolby Digital Audio format, HDMI ports support Dolby Digital 7.1CH Audio; DTS-HD Master Audio/Dolby-AC3/DSD/LPCM, DTS:X, Atoms
- Multiple easy installation, include metal mounting ear, HOOK&LOOP
- Plug and Play; No driver required; Installs in minutes
Technical Information

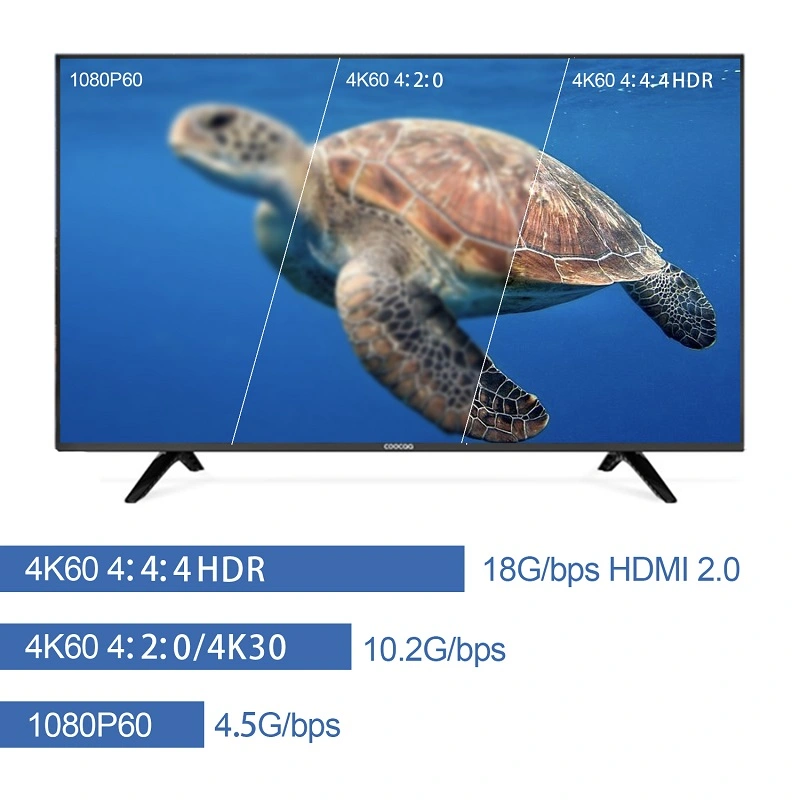

HDMI video Uncompressed HDMI 2.0,HDCP 2.2,4K@60Hz 4:4:4 8bit 18Gbps HDR,4K*2K/1080p/1080i,24bit/30bit,36bit deep color
HDMI audio Dolby Digital 7.1CH Audio,Dolby Atmos,Dolby TrueHD,DTS:X,DTS-HD Master
HDMI Input cable HDMI 2.0 standard cable, ≤10m AWG26
HDMI Output cable HDMI 2.0 standard cable, ≤15m AWG26
Max bandwidth 600MHz,
Max baud rate: 6Gbps
Input/Output TMDS signal 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal 5Volts p-p (TTL)
Power Adapter Input AC 100V-240V/ 50Hz,60Hz; Output DC 24V/0.7A
Operating Temperature -15 to +55℃
Operating Humidity 5 to 90%RH (No Condensation)

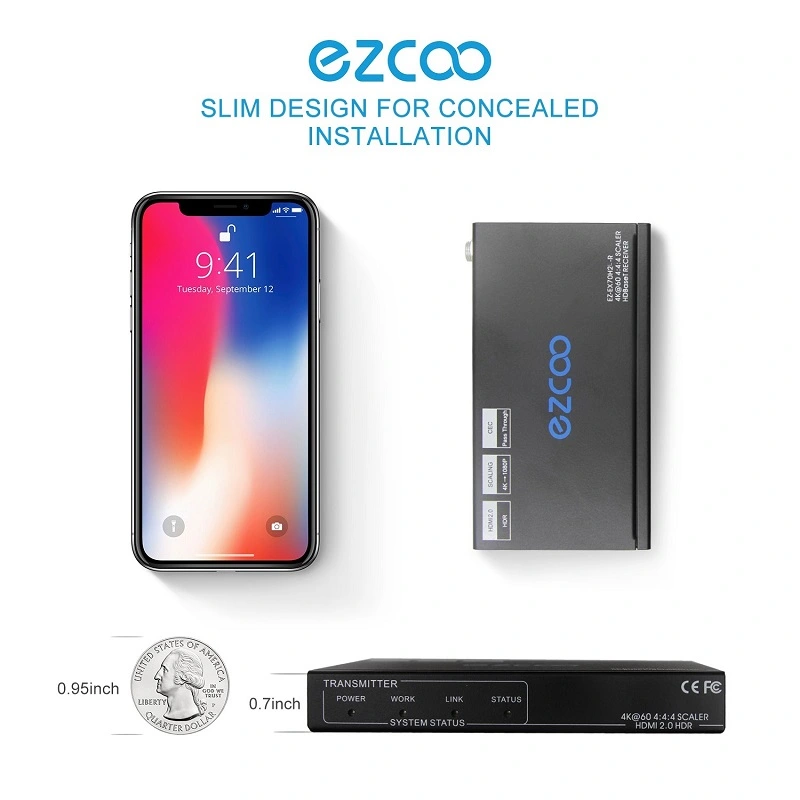

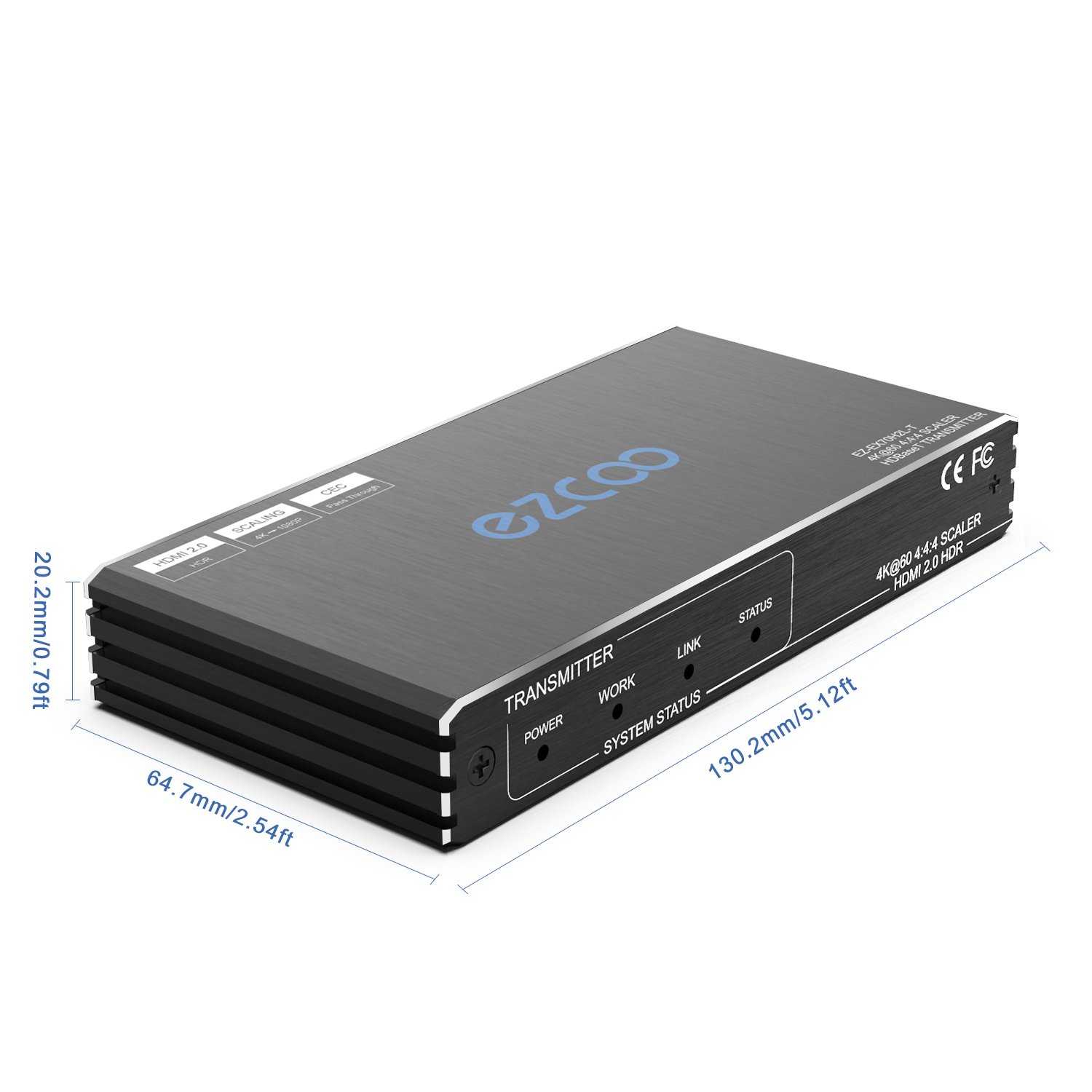

Dimension 12x6.5x18cm
Weight 0.38kg
Package Contents

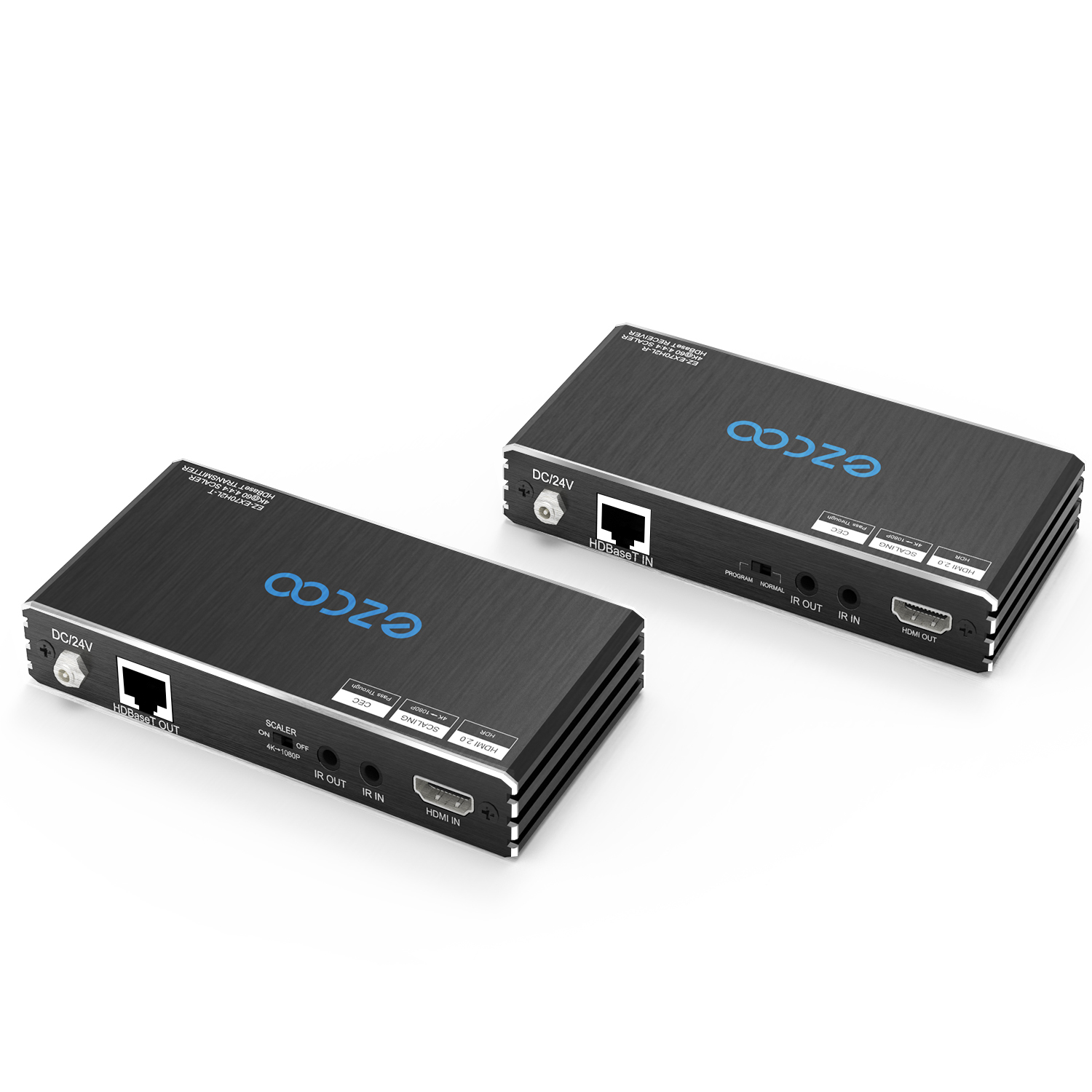

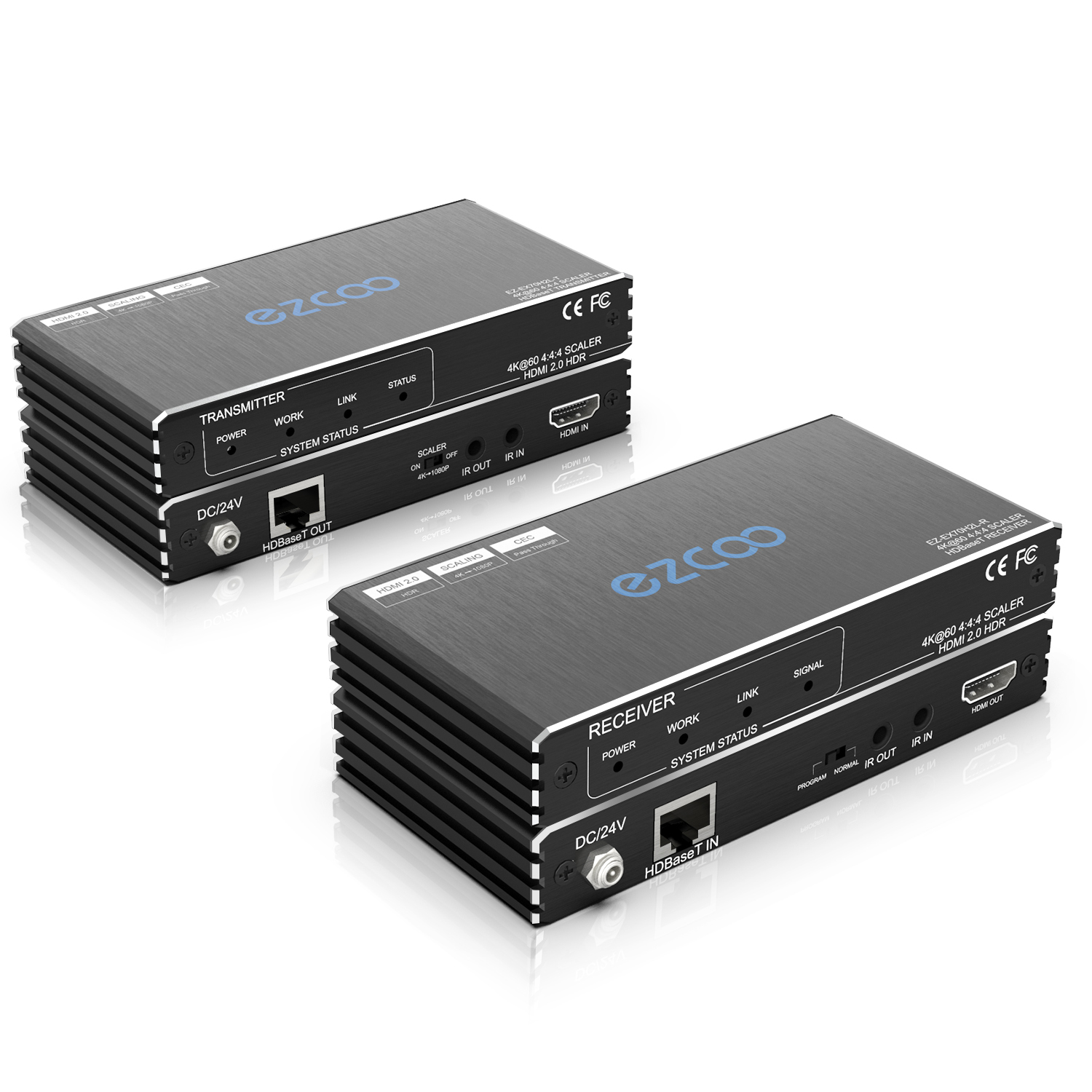

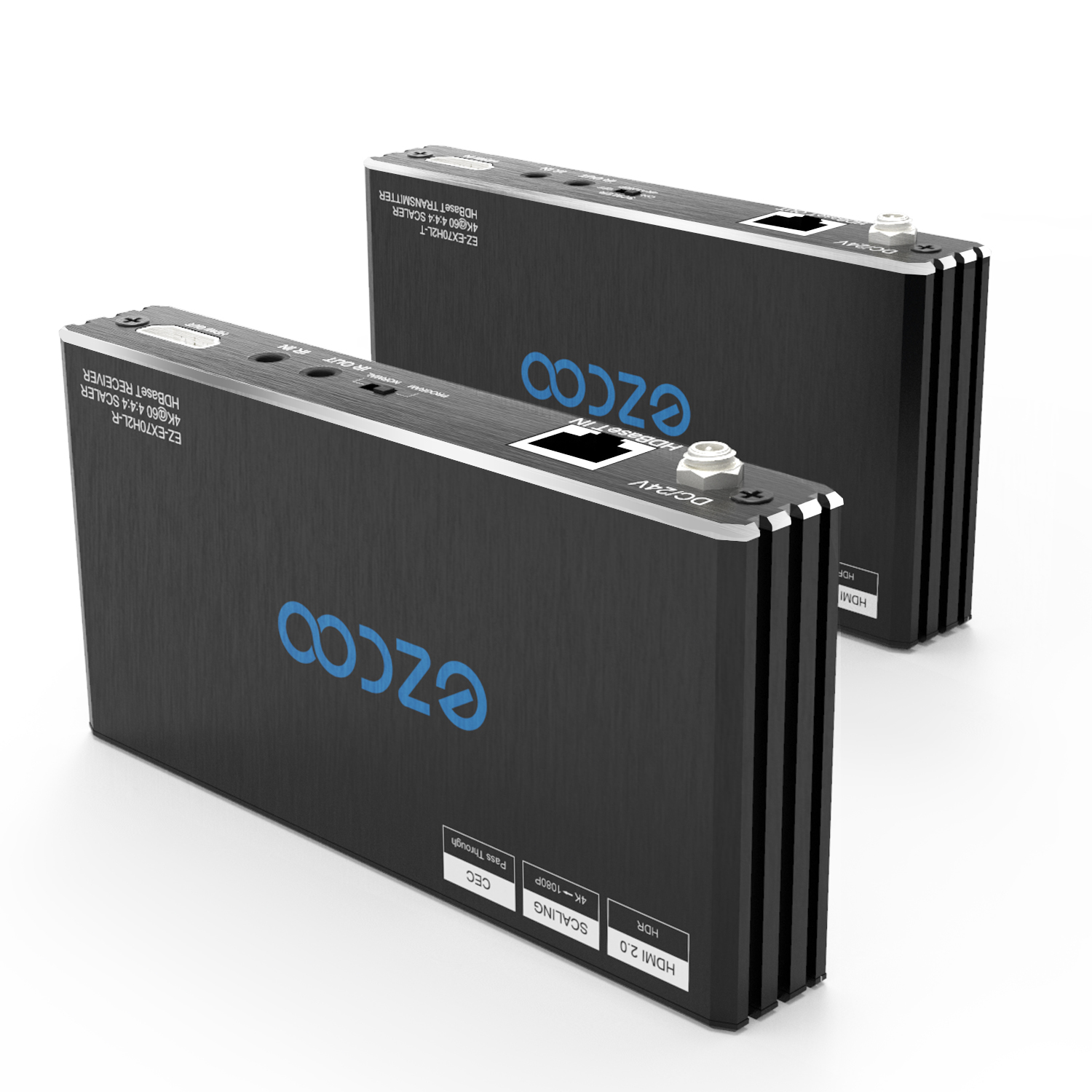

1x HDMI Extender Transmitter
1x HDMI Extender Receiver
1x Power Adapter
1x IR Emitter
1x IR Receiver
2x Mounting Ear
1x Hook&Loop
1x User Manual
2x Reusable Cable Tie
