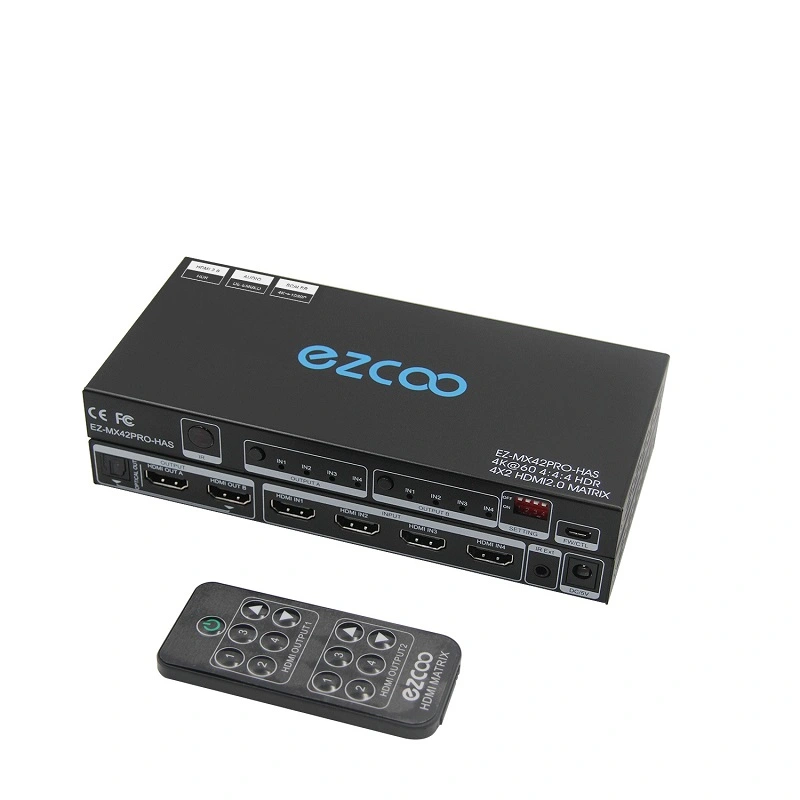

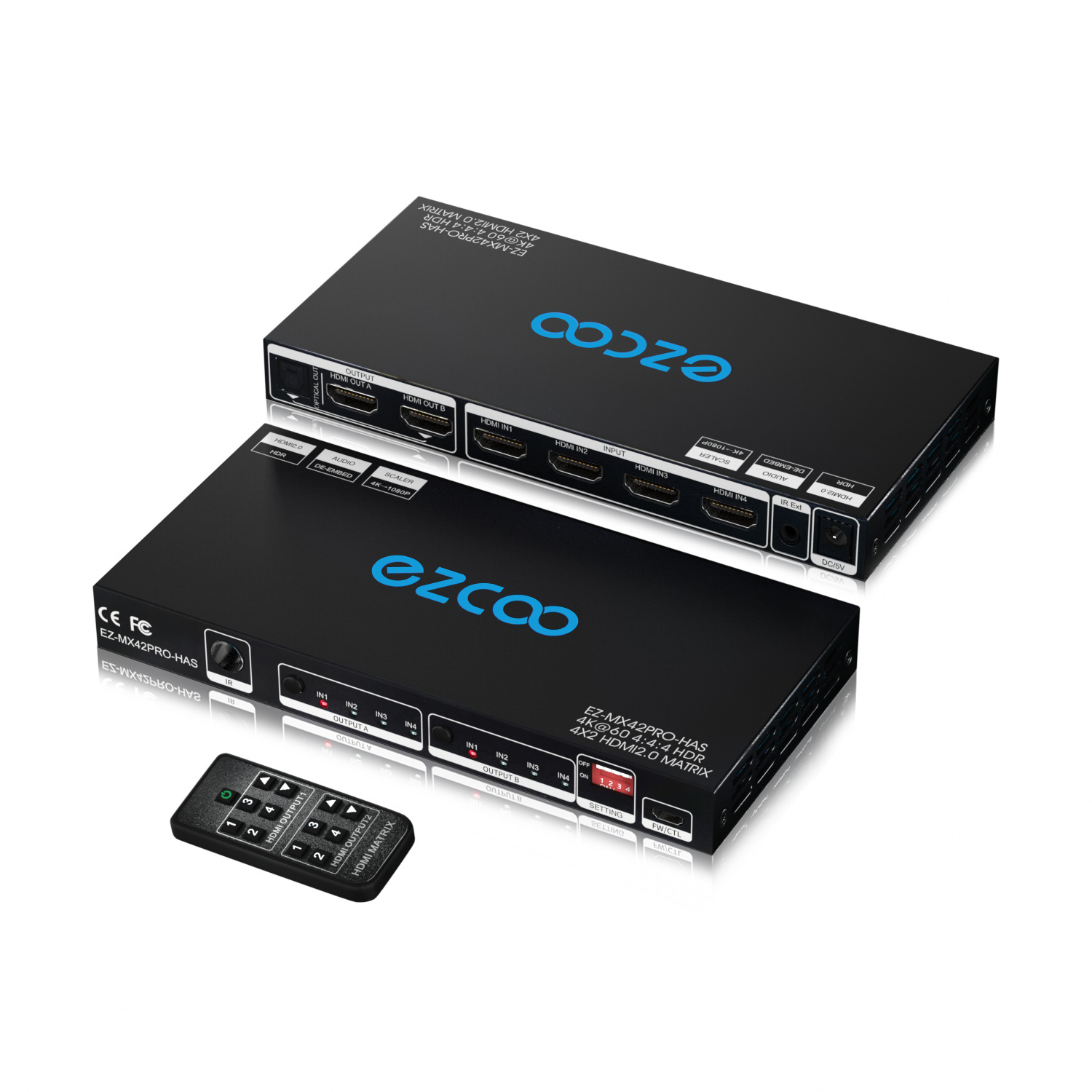

4K60 HDMI Matrix 4 IN 2 OUT, Dolby vision HDR , scaling output, SPDIF breakout,up to 18G/bps

Model: EZ-MX42PRO-HAS
HDMI Matrix 4 IN 2 OUT support 4K60 YUV4:4:4  8bit Dolby Vision HDR, Firmware Upgrade,HDMI Scaler Run 4K 1080P Together,Optical Toslink 5.1CH Breakout,Settable EDID,18Gbps HDMI Matrix Switch with IR Remot
(15 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Technical Information
  • Video
  • Download
  • Reviews(7)

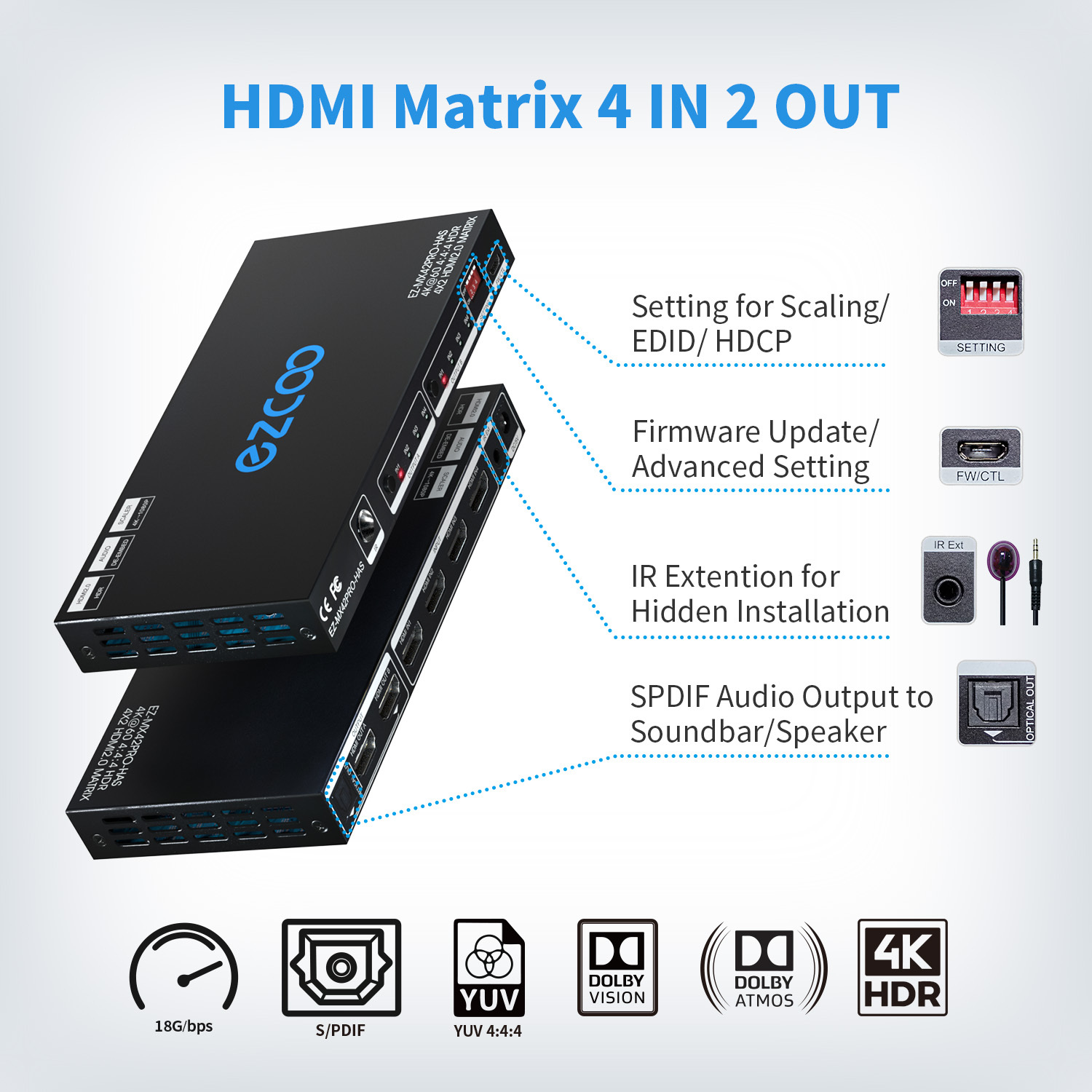

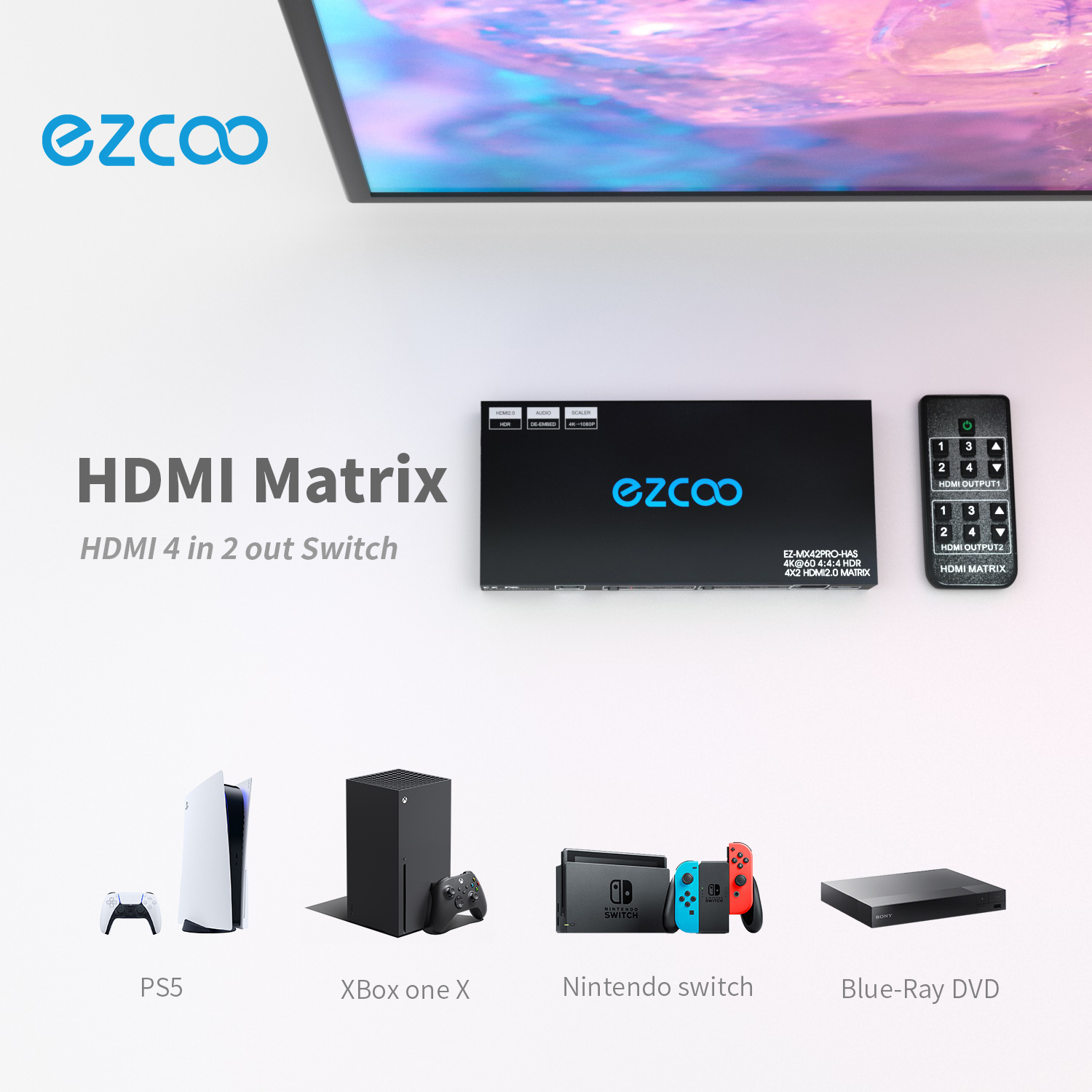

This EZ-MX42Pro-HAS is 4 IN 2 OUT HDMI Matrix with Ultra HD up to 4K@60Hz 4:4:4 8bit HDR and HDCP2.2. Down scaling and Audio de-embedding. It reliably distributes four HDMI source signal to two HDMI display devices, ideally use for offices,school,conference rooms,shopping malls,hotels and museums, which require to distribute and switch multiple HDMI source signal to two HDMI display devices.

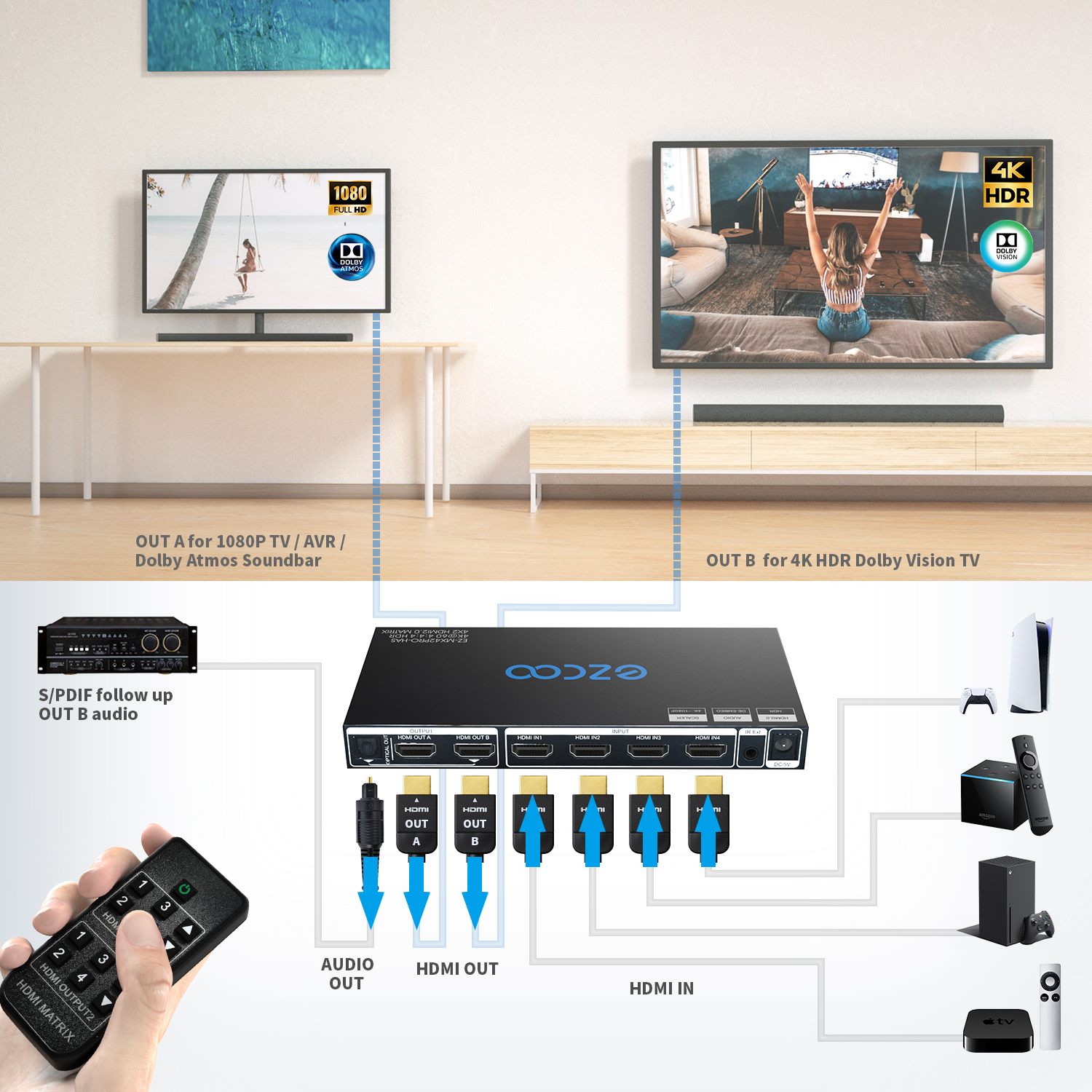

  • Distributes four HDMI sources signal to two HDMI display devices. It supports 4K and 1080P output simultaneously.
  • Supports HDMI 2.0 4K@60Hz 4:4:4 8bit HDR, HDCP 2.2
  • HDMI output 1 down scaler to 1080p

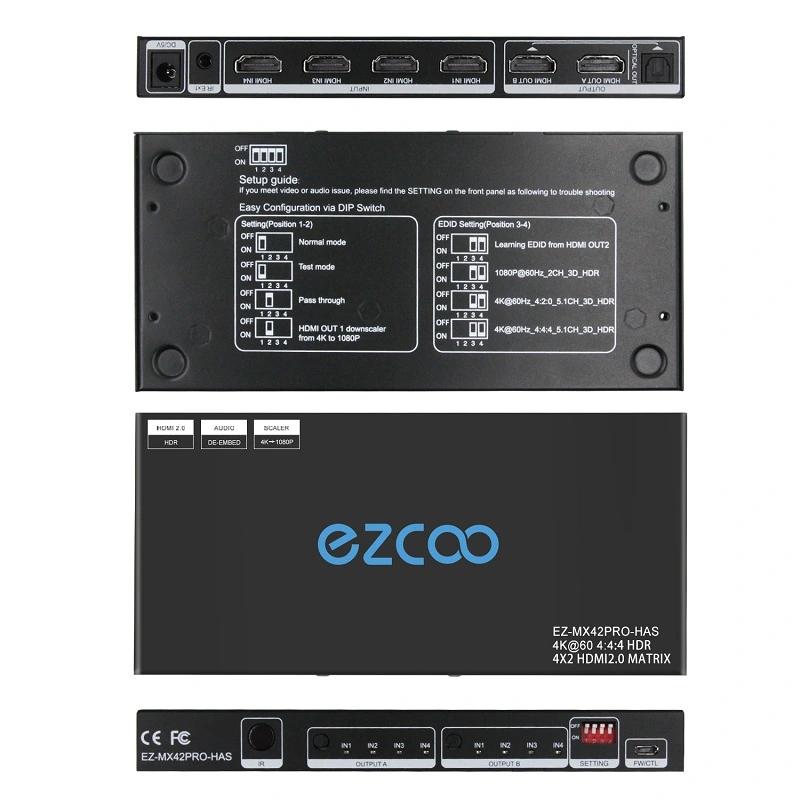

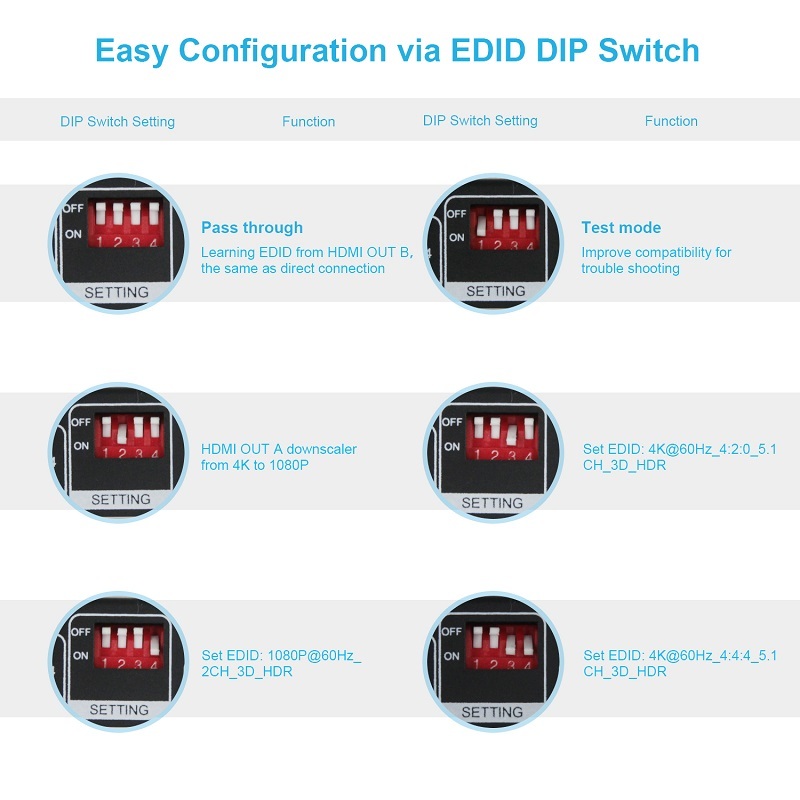

  • Supports EDID copy, multiple EDID setting for compatibility
  • Supports 3D, Support deep color 30bit, 36bit
  • Supports Blue-Ray 24/50/60fs/HD-DVD/xvYCC
  • Supports HDMI signal re-timing, never lose quality
  • Supports HDMI input up to 15metres AWG26 HDMI 2.0 standard cable length, output up to 25metres AWG24 cable length
  • Supports Audio DE-embed, SPDIF Optical Audio out without TV connection
  • Dolby Digital Audio format, HDMI ports support Dolby Digital 7.1CH Audio; SPDIF Optical Audio supports Dolby Digital/DTS-HD Master Audio/Dolby-AC3/DSD/LPCM/PCM 2.1/5.1CH
  • Plug and Play; No driver required; Installs in minutes
  • Support remote control, button control


Technical Information

HDMI video: HDMI 2.0,HDCP 2.2,4K@60Hz 4:4:4 8bit 18Gbps HDR Dolby Vision, 4K*2K/1080p/1080i,24bit/30bit,36bit deep color

HDMI audio: Dolby Digital 7.1CH Audio,Dolby Atmos,Dolby TrueHD,DTS:X,DTS-HD Master

HDMI Input cable: HDMI 2.0 standard cable, ≤15m AWG26

HDMI Output cable: HDMI 2.0 standard cable, ≤25m AWG26

Max bandwidth: 600MHz,
Max baud rate: 18Gbps

Power Adapter: Input AC 100V-240V/ 50Hz,60Hz; Output DC 5V/2A

Operating Temperature: -15 to +55℃

Operating Humidity: 5 to 90%RH (No Condensation)

Dimension:6.4 x 3.7 x 0.8 in

Weight: 0.75kg
