INRO

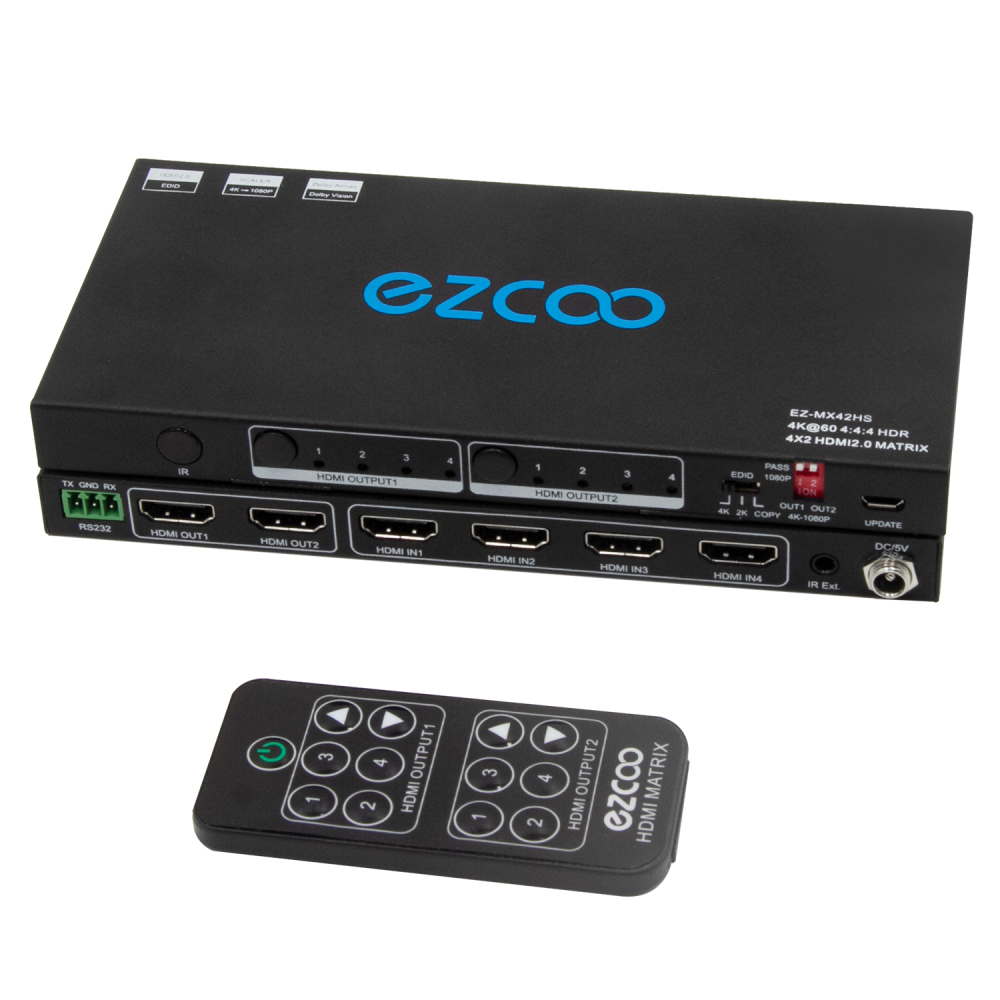

4K HDMI Matrix Switch 4x2 MX42HS distributes four HDMI sources to two HDMI displays reliably, supports HDMI2.0 4K@60Hz 4:4:4 18Gbps 8bit HDR Dolby Vision,Dolby Atmos.
CONTROL---RS232, IR Remote control, IR Extension cable. No CEC. Upgrade Firmware via micro-USB port.

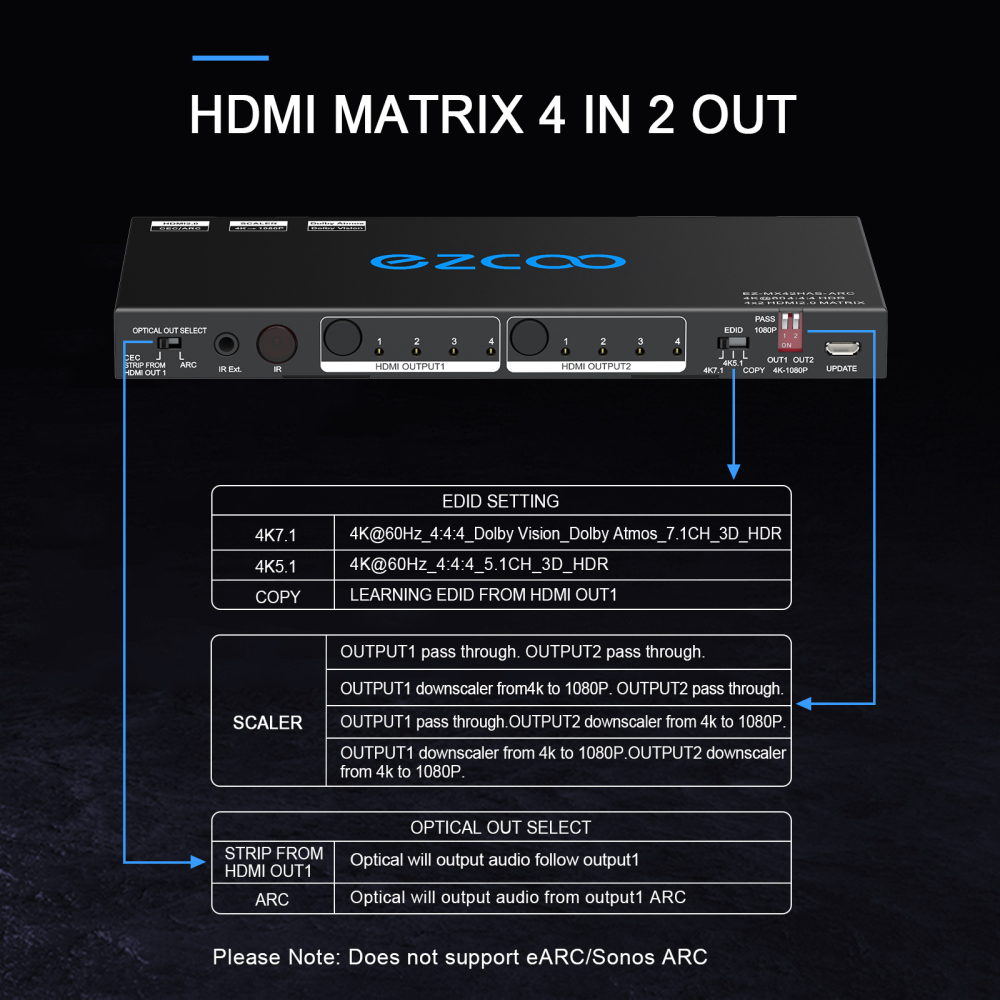

SET EDID
1. Set EDID to 4K via DIP Switch, get Dolby Atmos and Dolby Vision work in sync, Simplify matrix operation step.
2. Set EDID to COPY 1, matrix will learning EDID from TV which is connected to OUT 1.

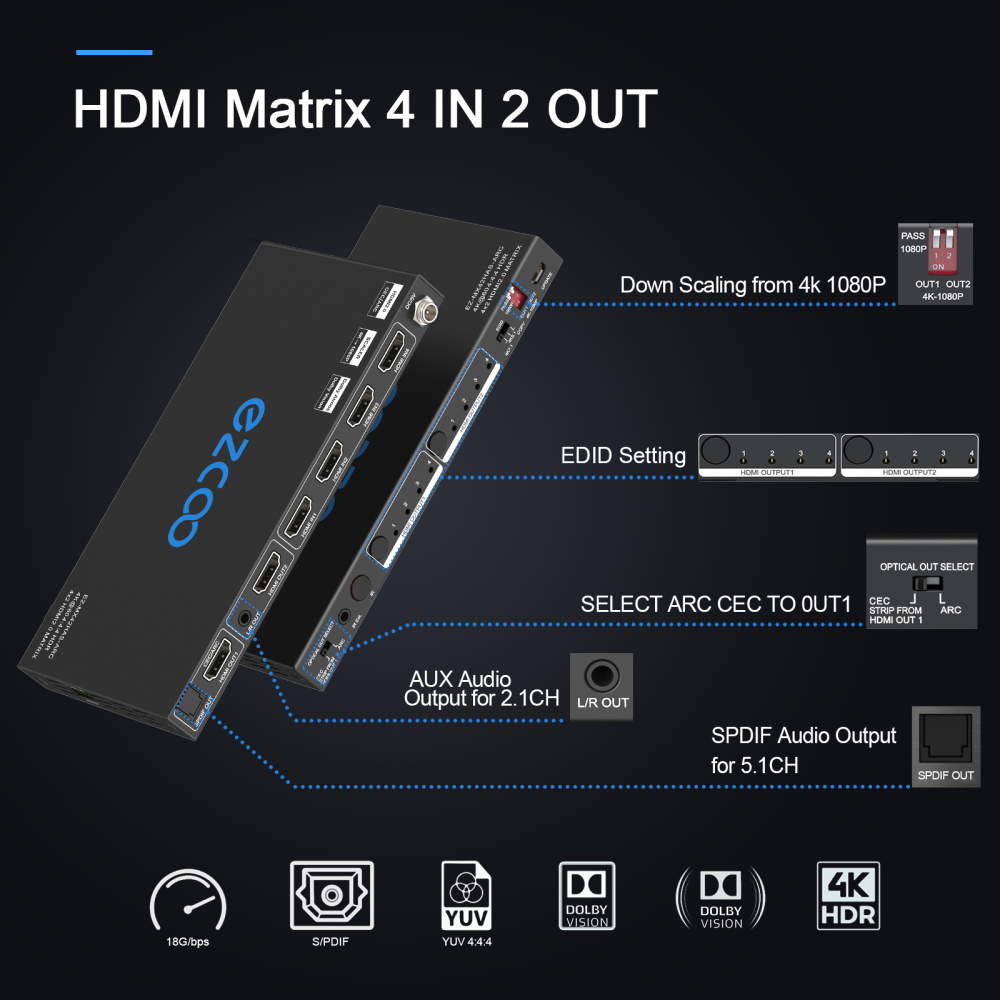

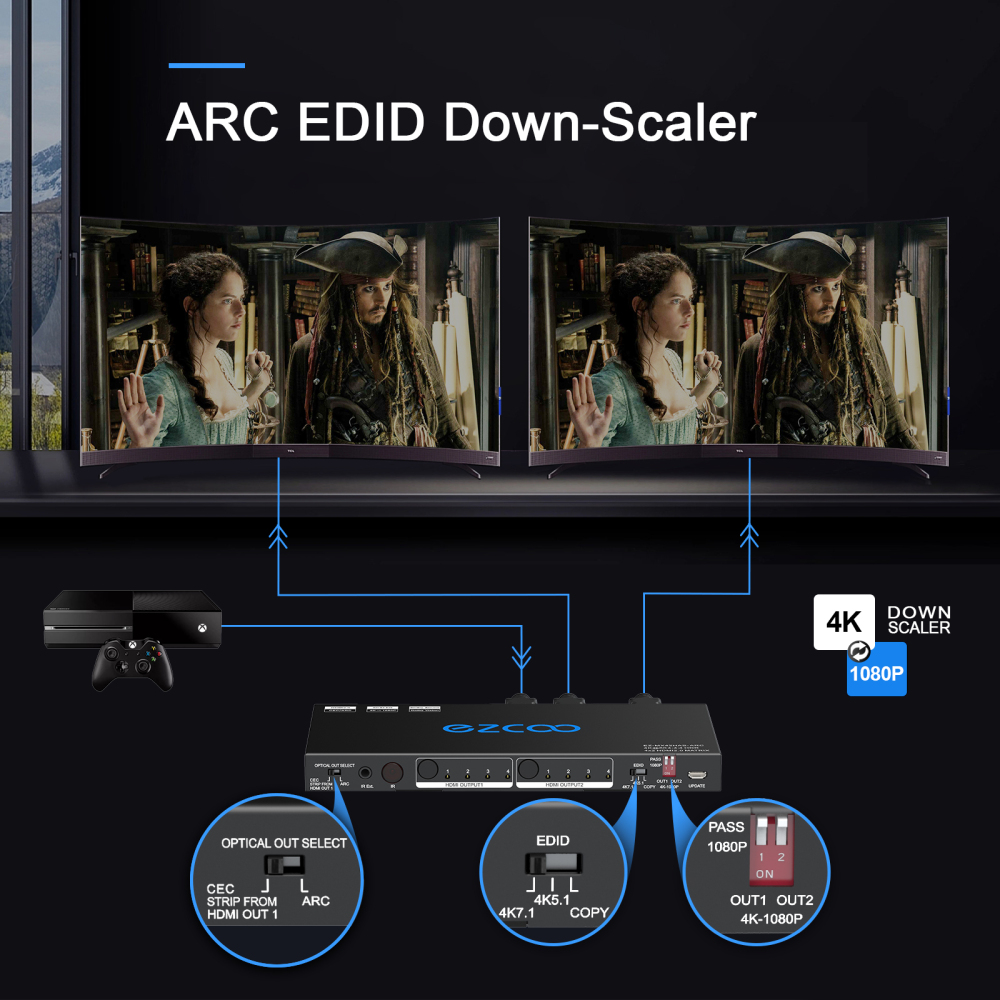

SET Down-Scale
1. Two HDMI outputs can down-scale 4K to 1080P only. NO Another resolution. When output 4K HDR Dolby Vision pls TURN OFF scaler. NOT down-scale HDR Dolby Vision.
2. SCALER switch 1 control OUT 1 down scaler; SCALER switch 2 control OUT 2 down scaler.
3. Supports 4K HDR TV and 1080p Capture Card work in sync.
.SPEC.
HDMI Video: HDMI 2.0,HDCP 2.2,4K 60Hz 4:4:4 8bit 18Gbps HDR Dolby Vision, 4K 60Hz 4:2:2 10bit HDR10, HDR Dolby Vision, 4K 2K/1080p/1080i,24bit/30bit,36bit deep color

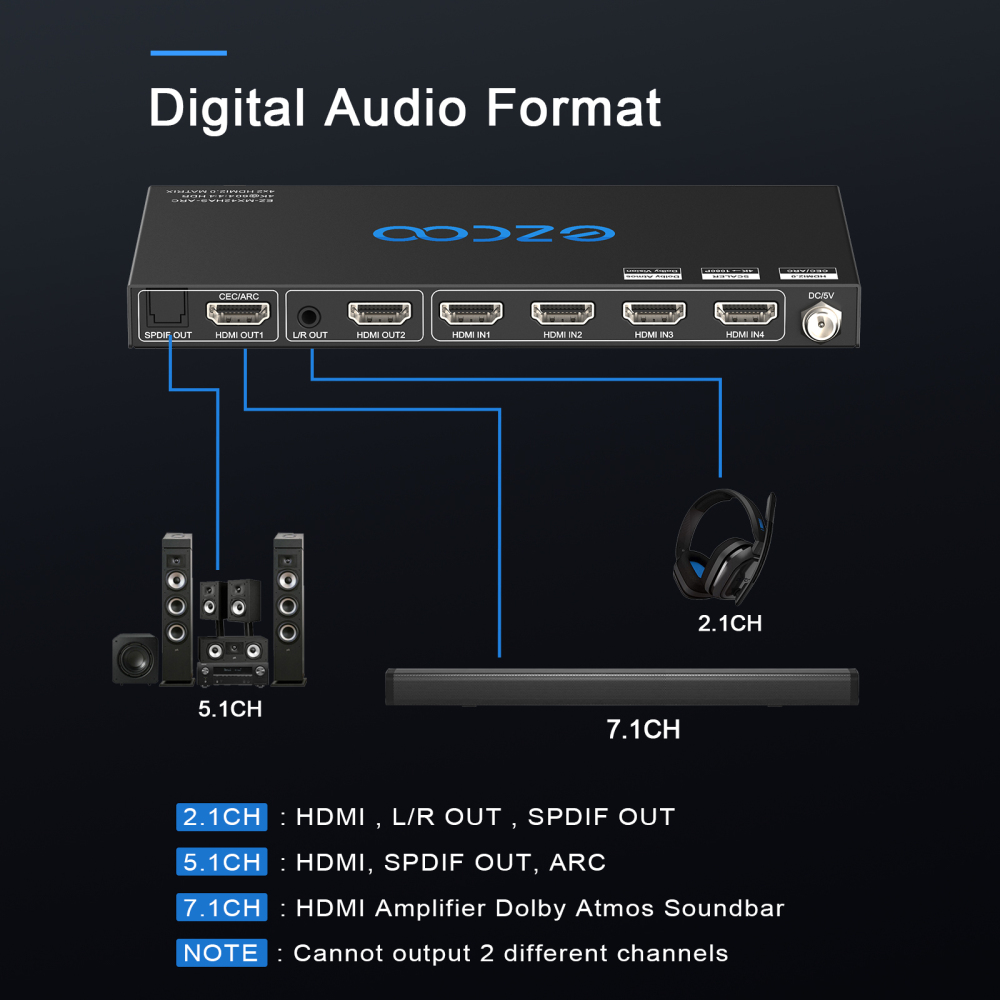

HDMI Audio: Dolby Digital 7.1CH Audio,Dolby Atmos,Dolby TrueHD,DTS:X,DTS-HD Master,LPCM 2.1/5.1/7.1CH
HDMI Cable: HDMI 2.0 standard cable, <15m AWG26
Power Adapter: Input AC 100V-240V/ 50Hz,60Hz; Output DC 5V/2A
High compliance with Soundbar,set-top boxes, Blu-ray DVD,cable satellite box, PC laptop,HD camera,HD DVR, etc. To get stable HQ picture, pls use less than 15mtr qualified HDMI 2.0 cable. Threaded power adapter to prevent power loss; Low Heat. Solid build quality.
NOT UP SCALER. NOT AUTO SWITCH.NO CEC.
