4K HDMI splitter extender 1 in 2 out over cat5/6 up to 50m/165ft.HDCP2.2/PoE/EDID Management,Two-way IR Down scaling

Model: EZ-EXSP12
4K HDMI splitter extender 1 in 2 out over cat5/6, 4K 60Hz (4:4:4 8bit) Extender Over Ethernet up to 50m/165ft.HDCP2.2/PoE/EDID Management 5.1/7.1CH, Two-way IR Down scaling from 4K to1080P
3 Review(s) Sold:26
Have a question?
Price:
USD
$172.99
$299.99
Wholesale:
5+
$169.99
Quantity:
-
+
(30 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Add to Favorite Items
  • HDMI Extender + Fiber optic HDMI cable
4K HDMI splitter extender 1 in 2 out over cat5/6 up to 50m/165ft.HDCP2.2/PoE/EDID Management,Two-way IR Down scaling
4K HDMI splitter extender 1 in 2 out over cat5/6 up to 50m/165ft.HDCP2.2/PoE/EDID Management,Two-way IR Down scaling
$ 172.99
0/2
Subtotal$172.99
  • Description
  • Technical Information
  • UM download
  • Reviews(3)
Over View

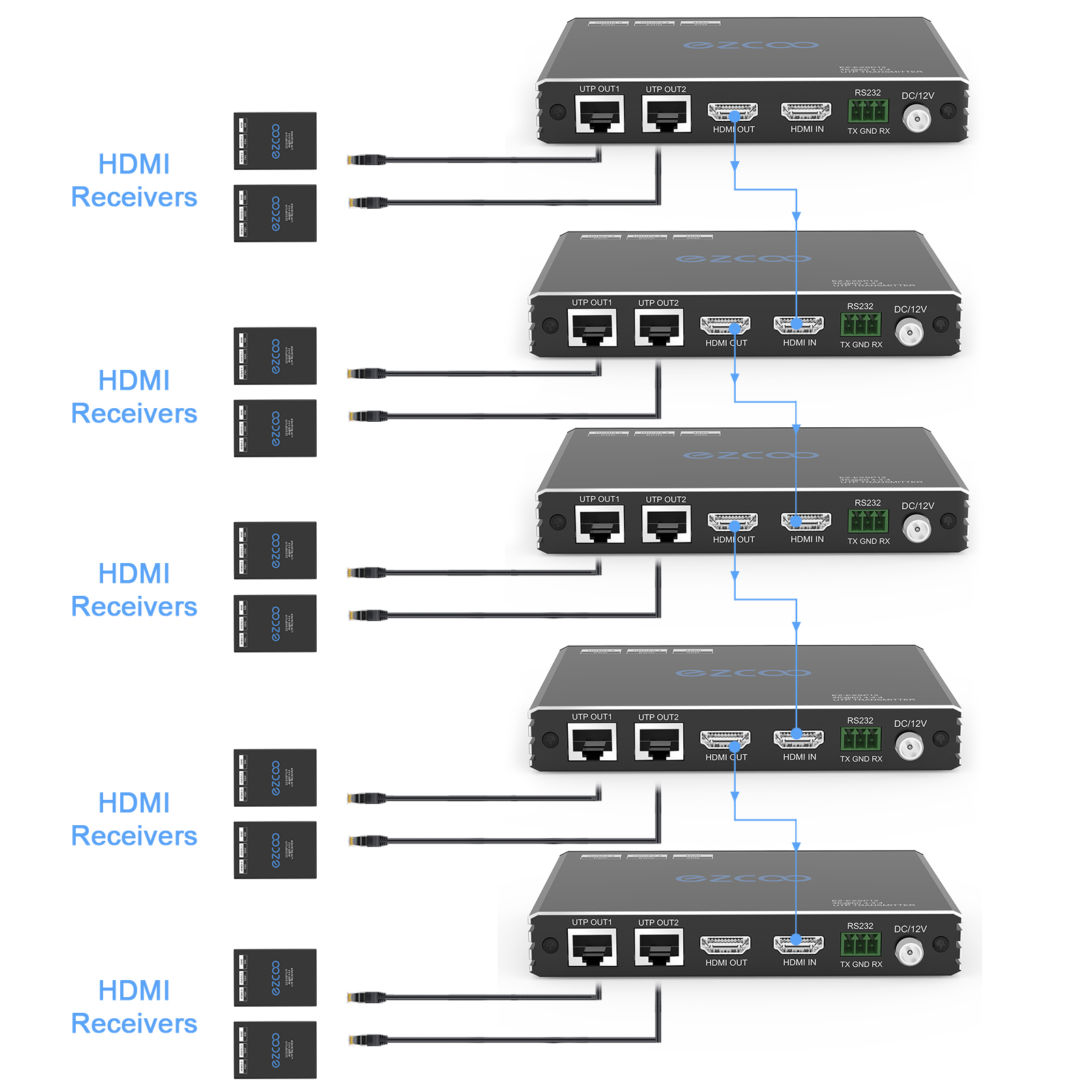

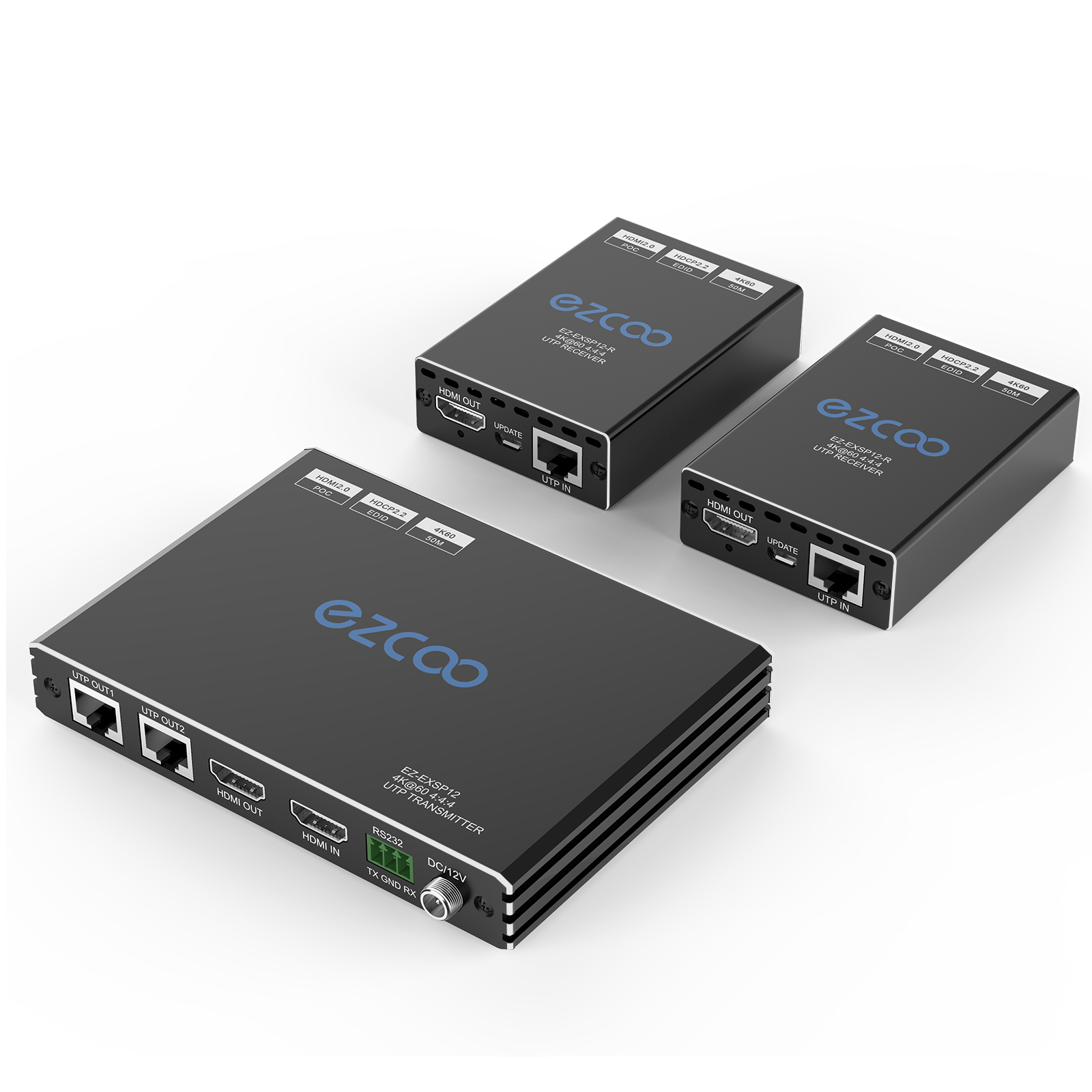

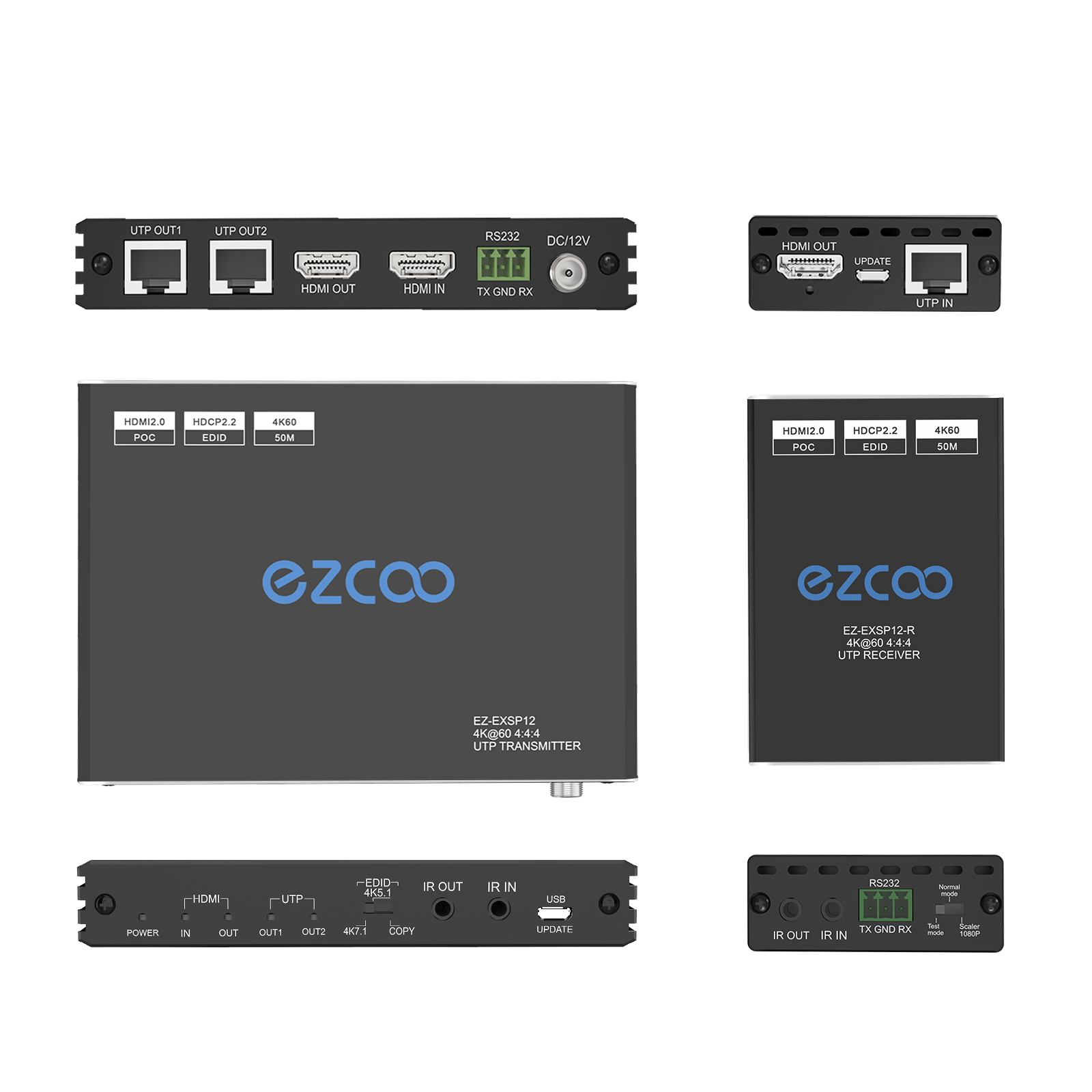

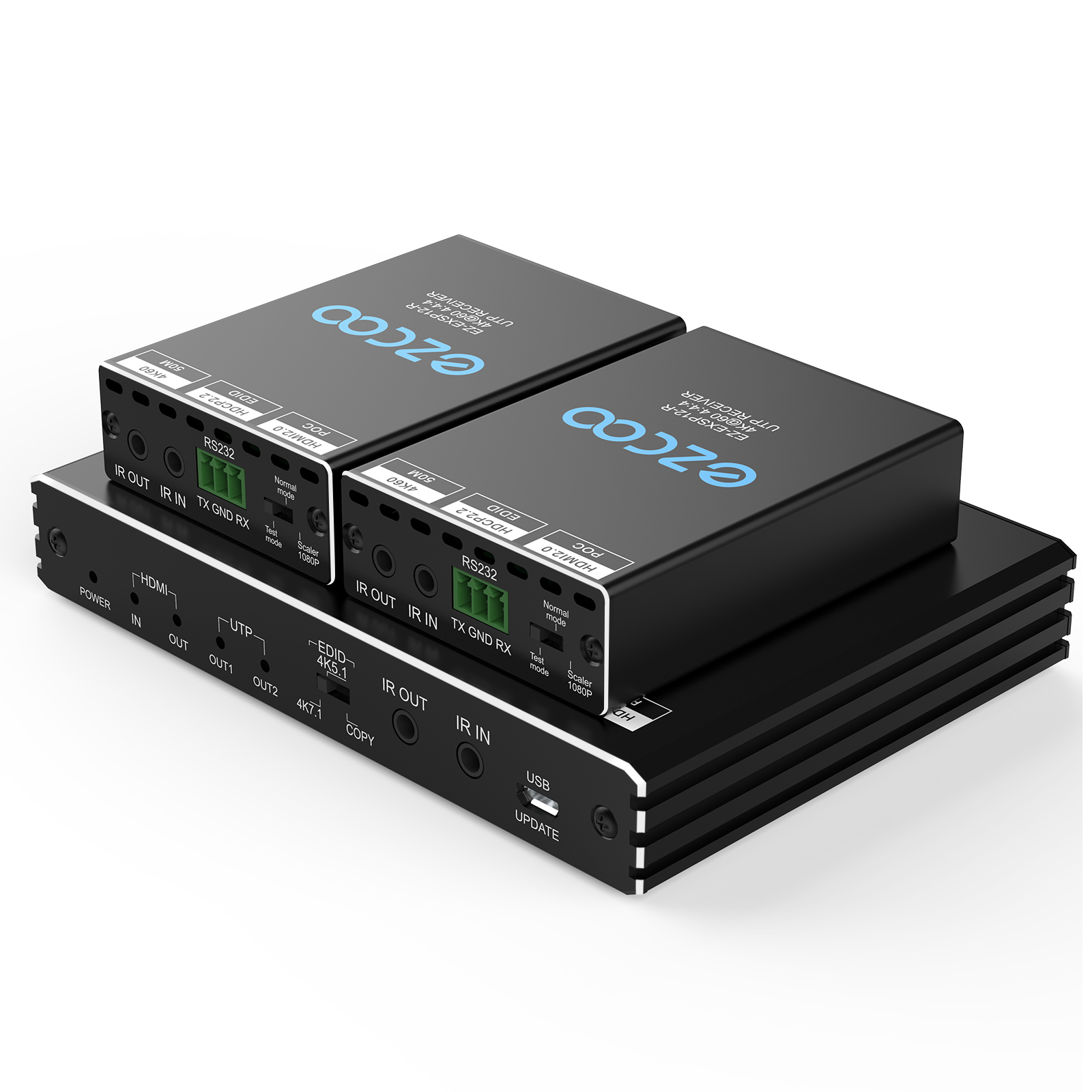

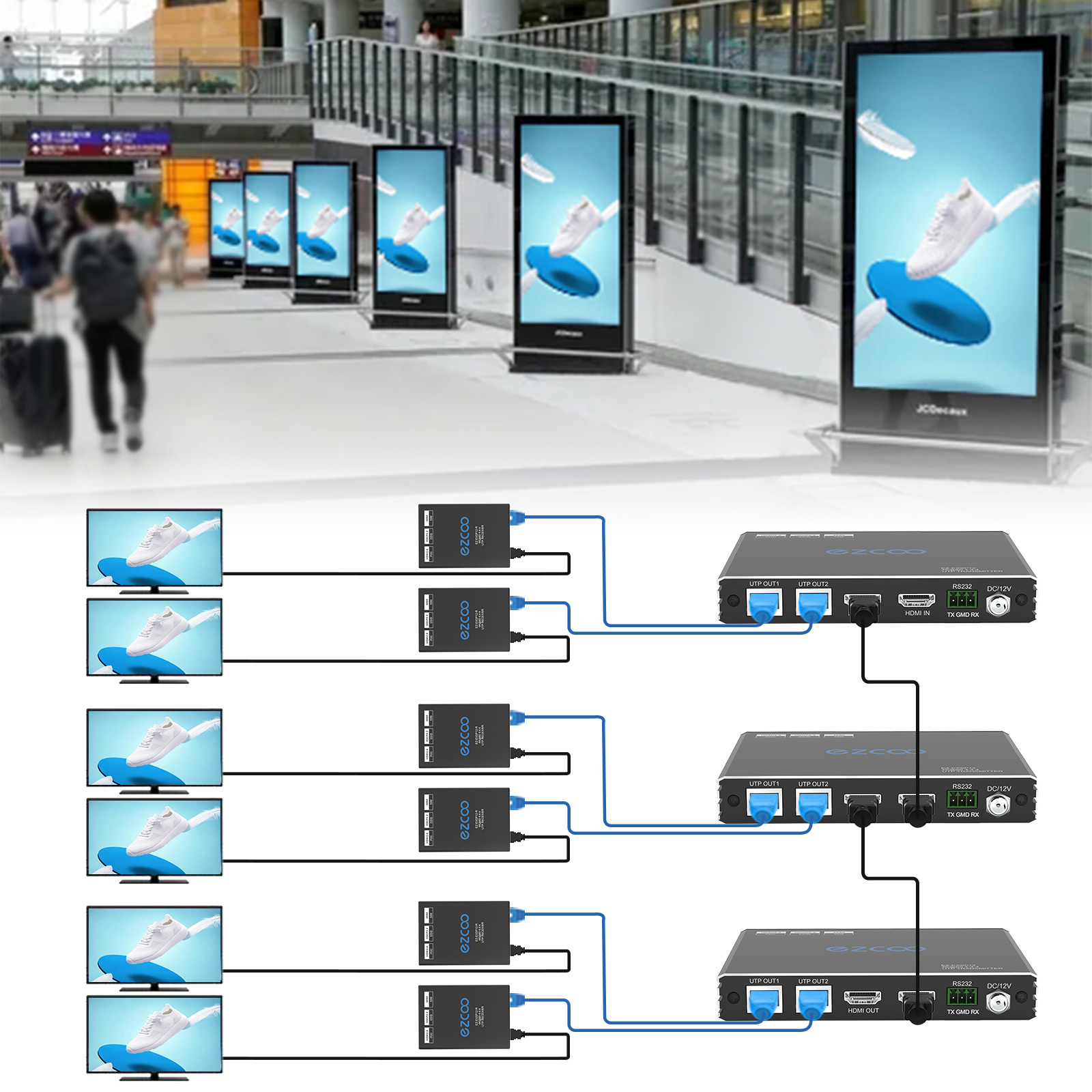

UTP HDMI Extender EZ-EXSP12 supports HDMI 2.0 4K@60Hz 4:4:4 8bit, HDCP2.2; Supports PoE, bi-directional IR, bi-directional RS232 and EDID management,. It provides distribution 3 of 3840 x 2160@60Hz 4:4:4 video, Two UTP outputs,one HDMI local loop output and Two-way IR up to 50m/165ft over a single Cat6a/7 cable. Simple cascade mode makes it easy to apply to sport bar,Education, church, digital signage and other environments.

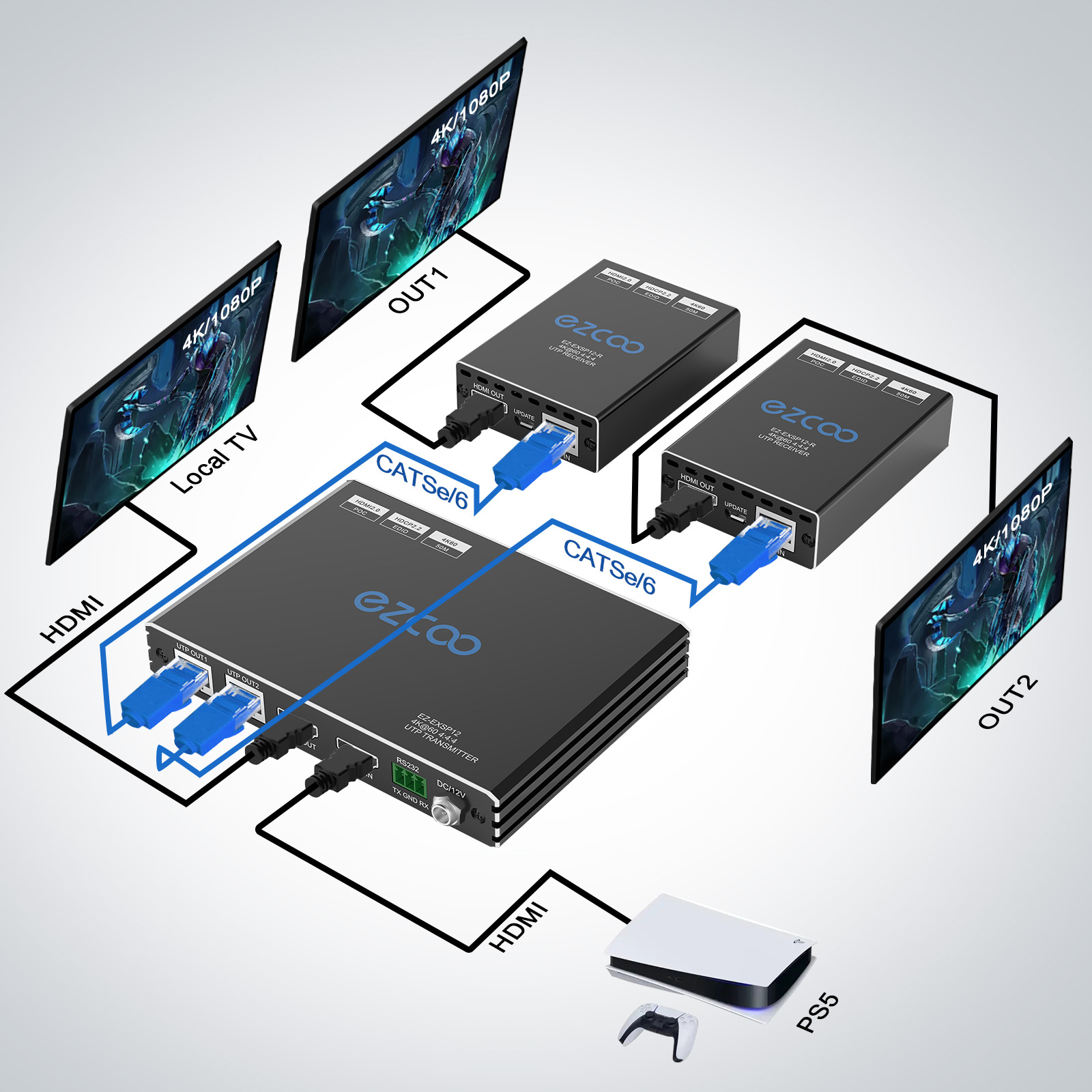

  • hdmi splitter extender 1x2: It distributes 3 of 3840 x 2160@60Hz 4:4:4 video, Two UTP outputs up to 50m/165ft over single Cat5e/6 cable with Two-way IR control and one HDMI local loop output for preview or daisy chain

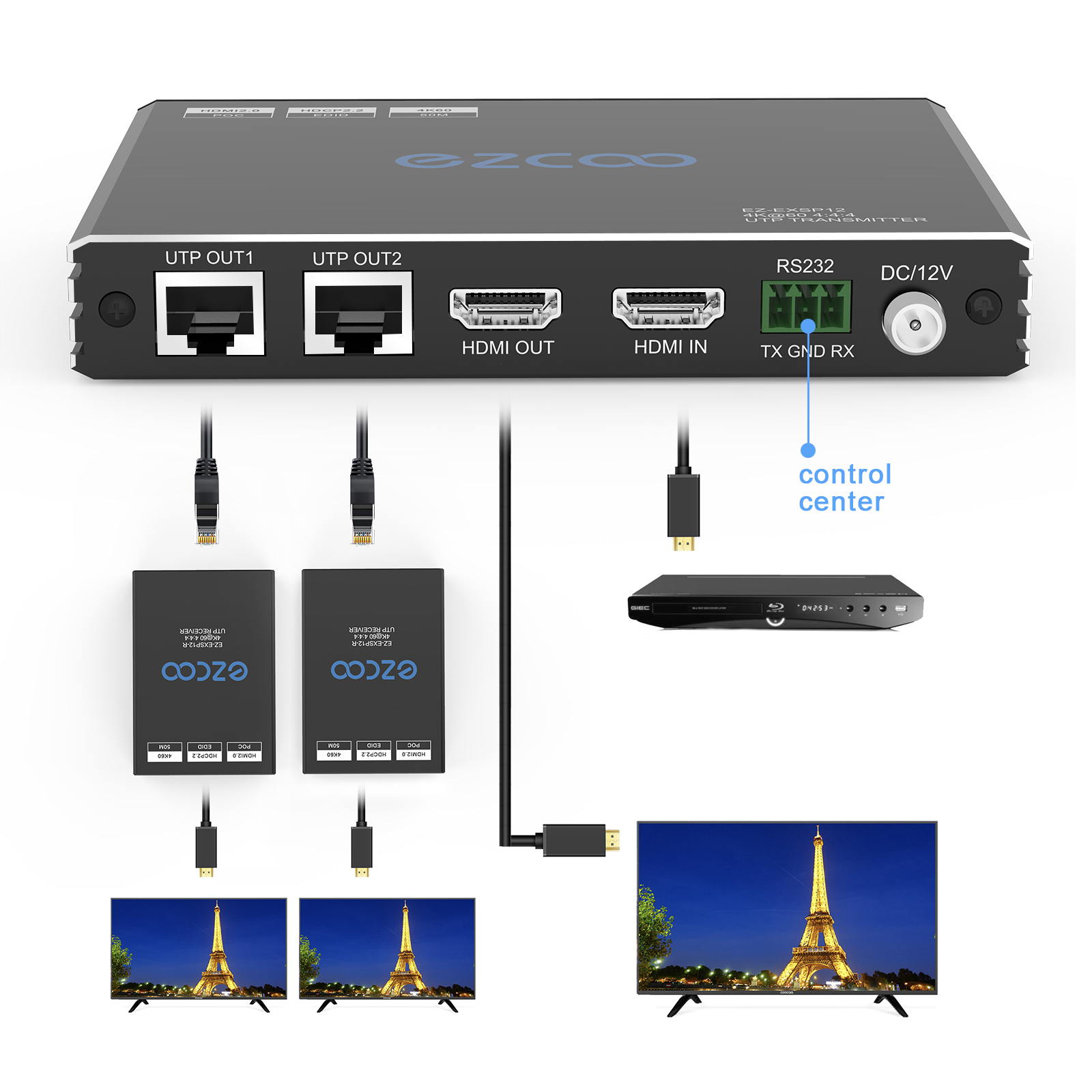

  • hdmi extender splitter USAGE :1.Connect HDMI cable from HDMI source to HDMI 1X2 Extender input. 2.Connect network/Ethernet cable from UTP out (Transmitter) to UTP input (Receiver). 3.Connect HDMI cable from HDMI output (Receiver) to HDMI input on your display.

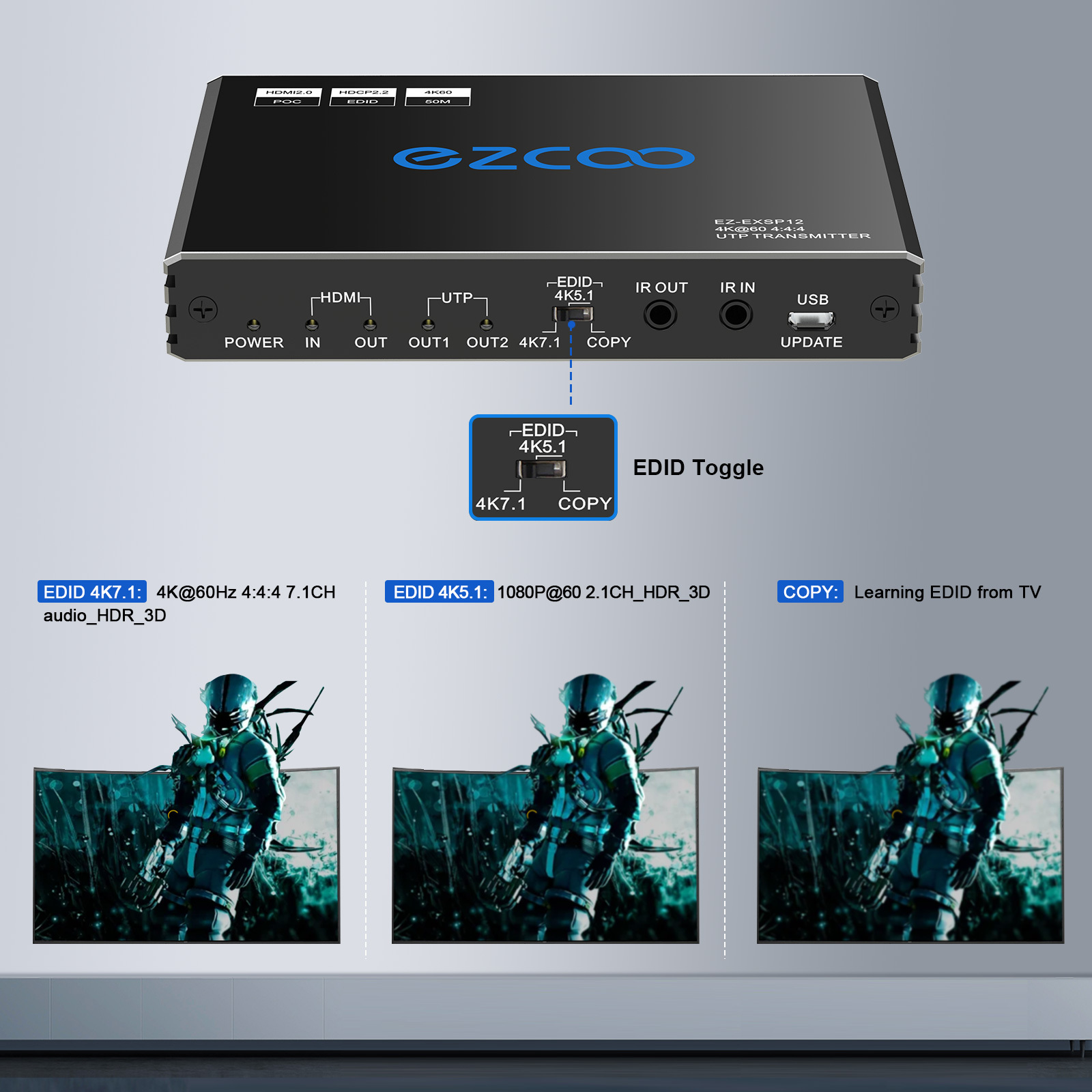

  • hdmi splitter extender 4K 60Hz : compatible with 4K 60Hz and VESA( 3840 x 2160) resolution and backward.Transmission distance up to 164 feet over single Cat5e or Cat6 cable;Supports HDMI 2.0 4K@60Hz 4:4:4 8bit, HDCP2.2; Supports PoE, bi-directional IR, bi-directional RS232 and EDID management
  • hdmi splitter extender 4K 60Hz : compatible with 4K 60Hz and VESA( 3840 x 2160) resolution and backward.Transmission distance up to 164 feet over single Cat5e or Cat6 cable;Supports HDMI 2.0 4K@60Hz 4:4:4 8bit, HDCP2.2; Supports PoE, bi-directional IR, bi-directional RS232 and EDID management
  • HIGH COMPATIBILITY ---18Gbps ezcoo 1x2 HDMI extender splitter ethernet works well with HDMI 2.0 HDCP 2.2 devices, for Roku 4, Amazon Fire TV, Fire Stick, Xbox one S, Apple TV,PS3 PS4 Pro,set-top boxes,Blu-ray DVD, cable satellite box, PC laptop, HD camera, HD DVR.

Technical Information

  1. HDMI version: Uncompressed HDMI 2.0
  2. HDCP version: HDCP2.2
  3. HDMI resolution: 4K*2K/1080p/1080i/720p/576p/576i/480p/480i
  4. Support video format: 24bit/30bit,36bit deep color
  5. Support audio format: Dolby true HD/DTS-HD/LPCM7.1/Dolby-AC3/DSD
  6. Max bandwidth: 600MHz  Max baud rate: 18Gbps
  7. Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
  8. Input/Output DDC signal: 5Volts p-p (TTL)
  9. Max working current: 1.5A
  10. Power adapter format: Input AC 100V-240V/ 50HZ,60HZ; Output: DC12V/2A
  11.  Operating Temperature range: -15 to +55℃
  12. Operating Humidity range: 5 to 90%RH (No Condensation)
  13. Dimension (L x W x H): TX:130*94*20(mm);RX:83*58*22(mm)
  14. Weight: 400g
EZ-EXSP12_UM_V1.0
