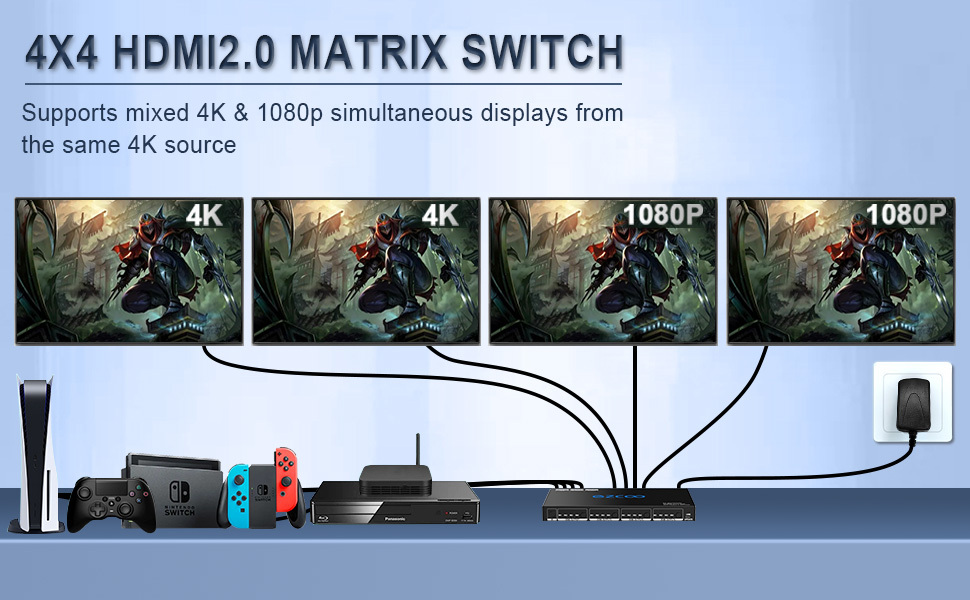

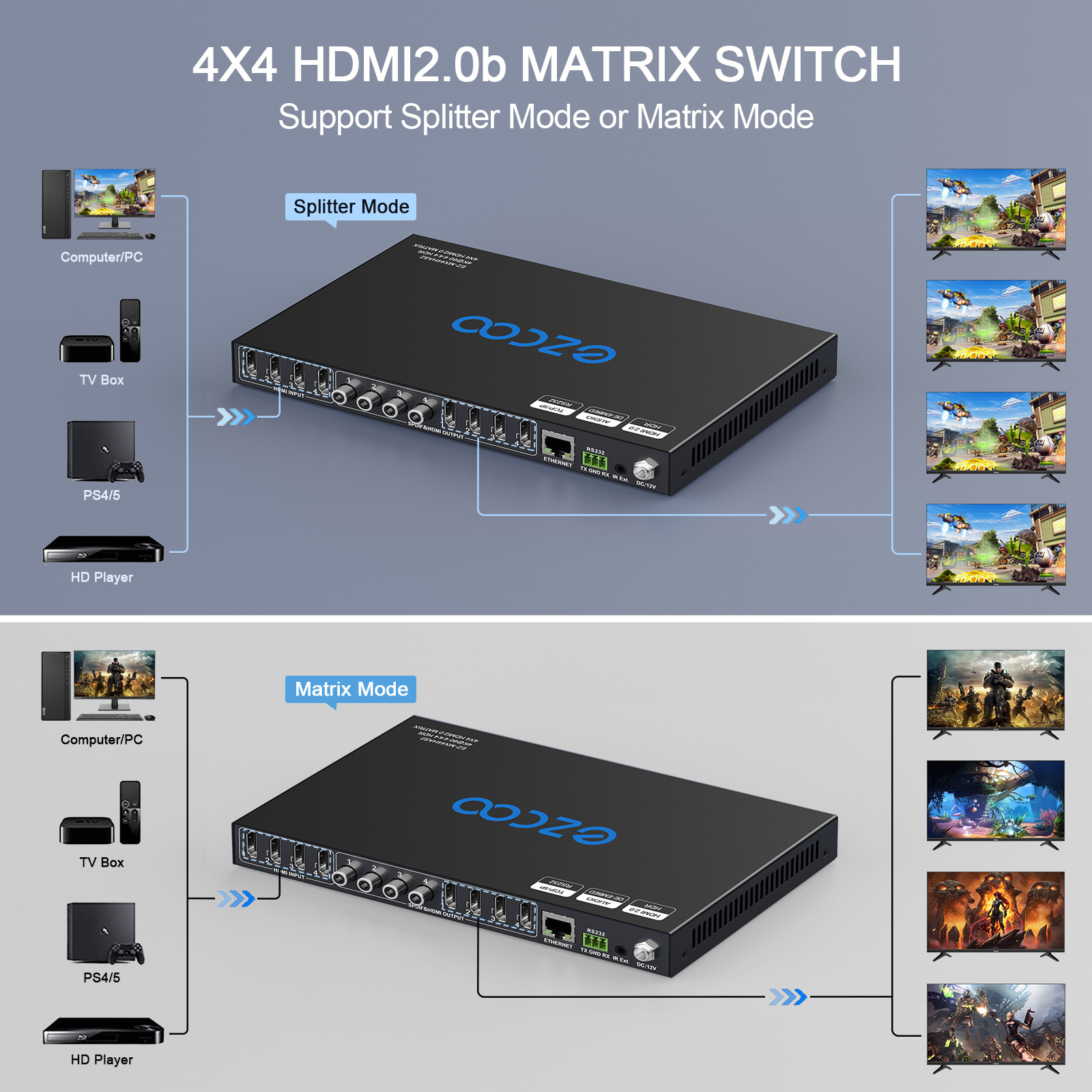

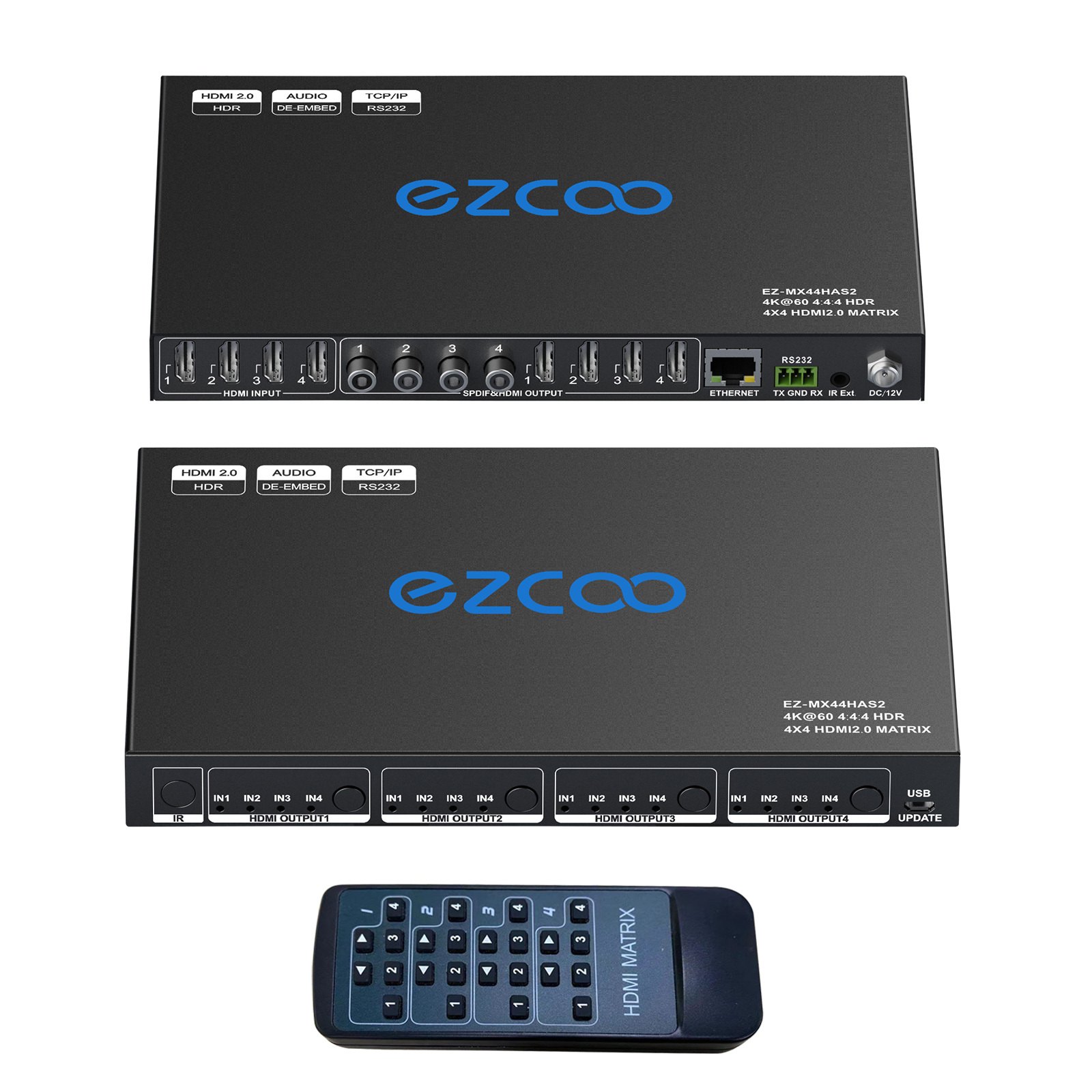

- ✔ 4x4 HDMI Matrix – Connect up to four HDMI source devices and independently distribute any source to any of the four HDMI displays. Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats

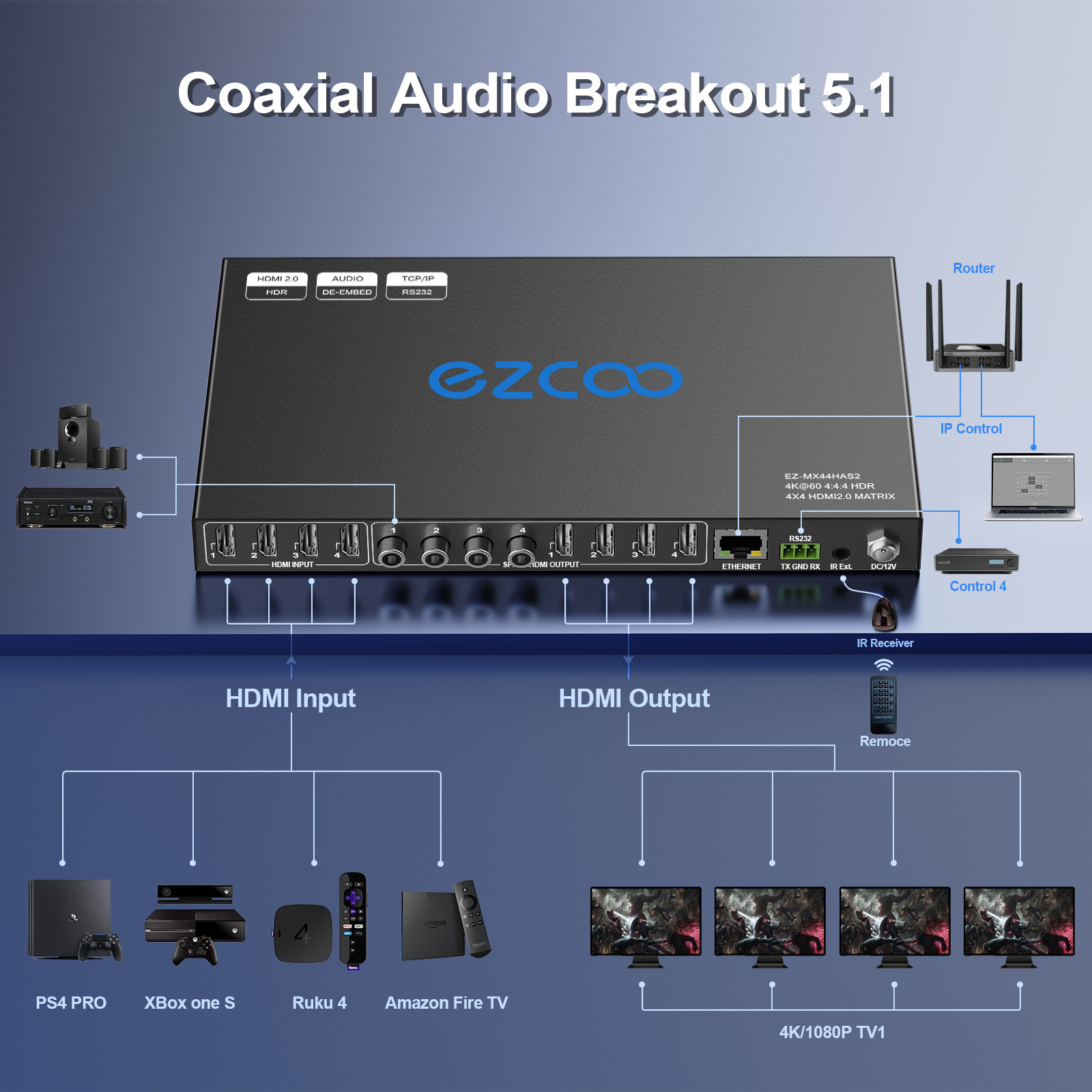

- ✔ HDMI 2.0 Standard – Up to 4K @60Hz YUV 4:4:4 8-bit, HDR (at 4K @60Hz YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps. Supports audio extraction to S/PDIF Coaxial audio for each HDMI output
- ✔ EDID Management – EDID learning from connected displays or choose from a wide selection of pre-programmed EDID settings to ensure the correct signal resolution is output from the sources, resulting in better picture quality.

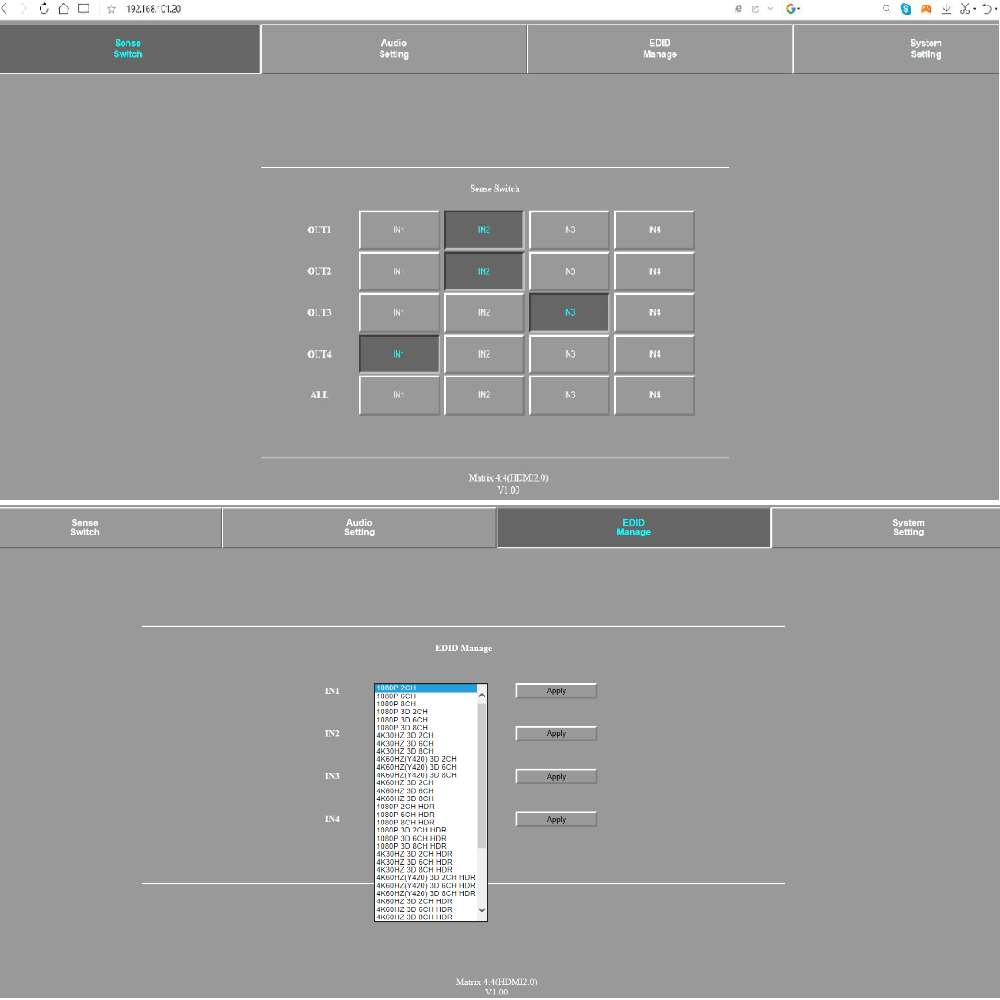

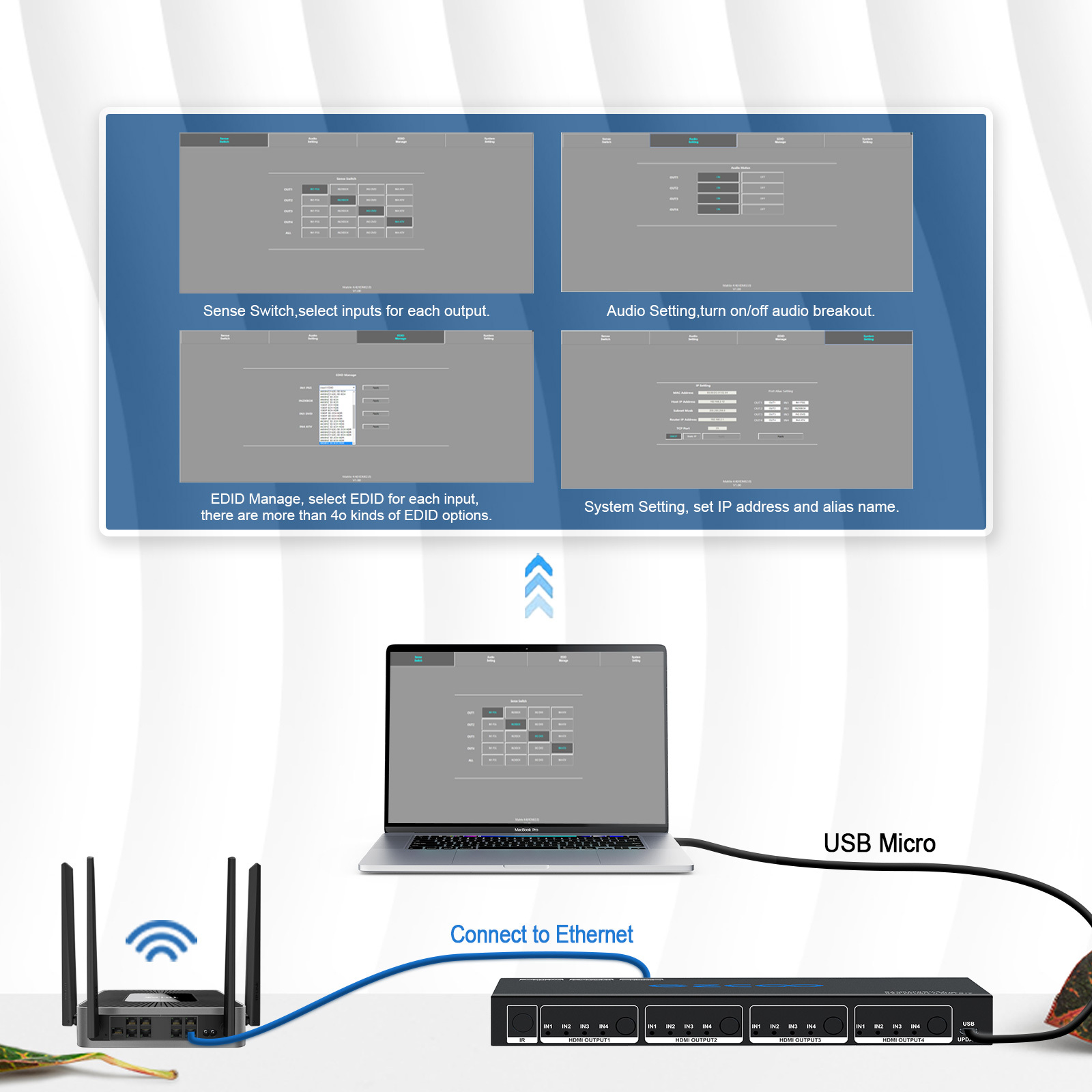

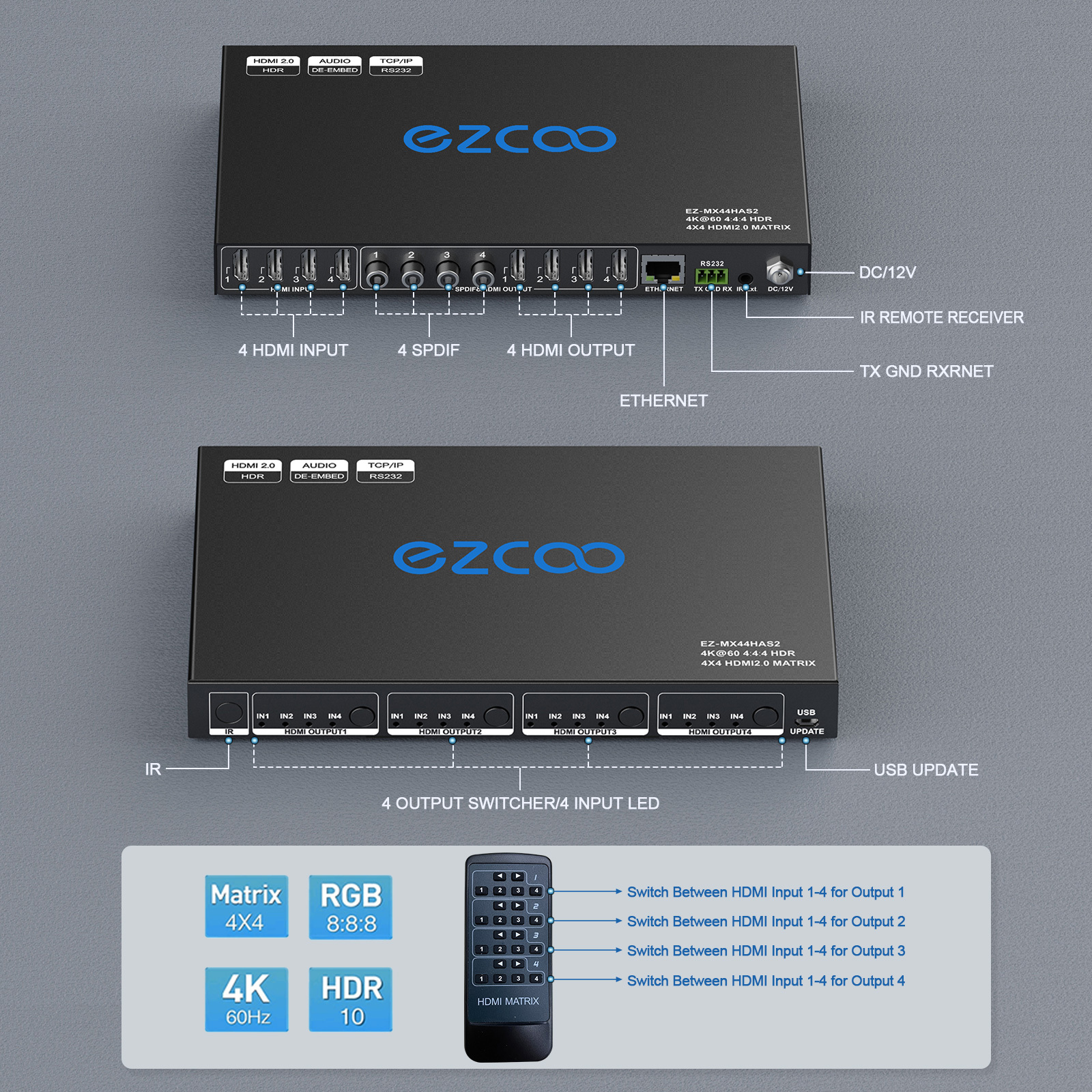

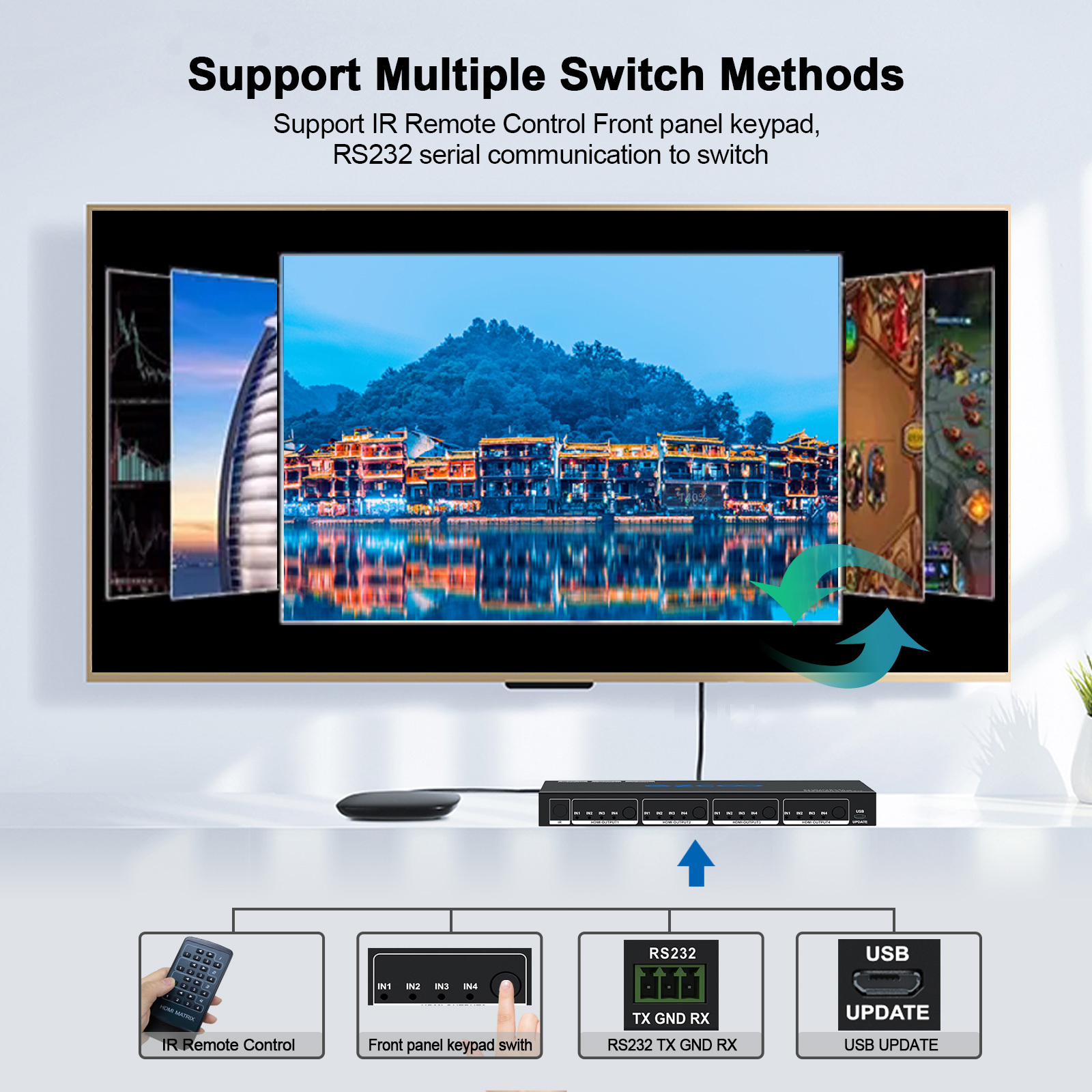

- ✔ Flexible Switching Options – 1) Push buttons, 2) IR remote, 3) RS-232 control, 4) IP control, 5) Web GUI control. Select sources for each display in a way that is most convenient to you.
- ✔ HIGH QUALITY COMPONENTS – FCC, CE & RoHS compliant. Surface mountable metal enclosure with ESD protection to prevent malfunction or breakdown
Technical Information
HDMI video: HDMI 2.0,HDCP 2.2,4K@60Hz 4:4:4 8bit 18Gbps HDR Dolby Vision, 4K*2K/1080p/1080i,24bit/30bit,36bit deep color
HDMI audio: Dolby Digital 7.1CH Audio,Dolby Atmos,Dolby TrueHD,DTS:X,DTS-HD Master
HDMI Input cable: HDMI 2.0 standard cable, ≤15m AWG26
HDMI Output cable: HDMI 2.0 standard cable, ≤25m AWG26
Max bandwidth: 600MHz,
Max baud rate: 18Gbps
Power Adapter: Input AC 100V-240V/ 50Hz,60Hz; Output DC 5V/2A
Operating Temperature: -15 to +55℃
Operating Humidity: 5 to 90%RH (No Condensation)
Dimension：6.4 x 3.7 x 0.8 in
Weight: 0.75kg
User Manual and IP control

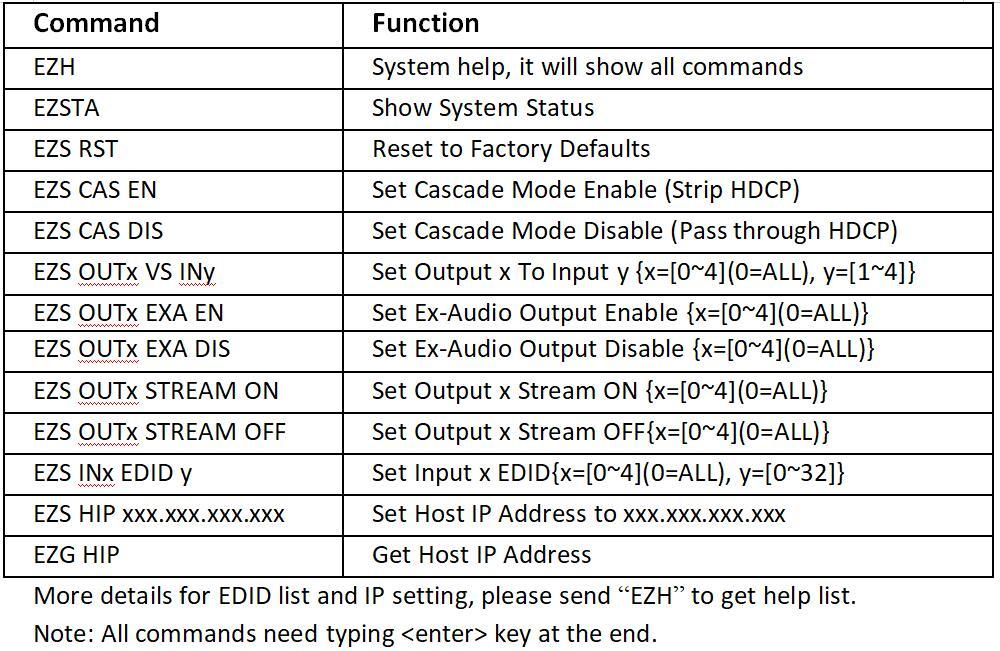

| Command |
Function |
|
EZH
|
System help, it will show all commands |
| EZSTA |
Show System Status |
| EZS RST |
Reset to Factory Defaults |
| EZS CAS EN |
Set Cascade Mode Enable (Turn OFF HDCP) |
| EZS CAS DIS |
Set Cascade Mode Disable (Turn ON HDCP) |
| EZS OUTx VS INy |
Set Output x To Input y {x=[0~4](0=ALL), y=[1~4]} |
| EZS OUTx EXA EN |
Set Ex-Audio Output Enable {x=[0~4](0=ALL)} |
| EZS OUTx EXA DIS |
Set Ex-Audio Output Disable {x=[0~4](0=ALL)} |
| EZS OUTx STREAM ON |
Set Output x Stream ON {x=[0~4](0=ALL)} |
| EZS OUTx STREAM OFF |
Set Output x Stream OFF{x=[0~4](0=ALL)} |
| EZS INx EDID y |
Set Input x EDID{x=[0~4](0=ALL), y=[0~32]} |
| EZS HIP xxx.xxx.xxx.xxx |
Set Host IP Address to xxx.xxx.xxx.xxx |
| EZG HIP |
Get Host IP Address |
