8K@60Hz 4K@120Hz HDMI 2.1 Splitter 1x2,48Gbps,Supports Soundbar,HDCP 2.2,HDCP 2.3 Bypass,Duplicate/Mirror,EDID,Copy,Downscale, HDR,Dolby Vision Atmos,

Model: EZ-SP12H28S

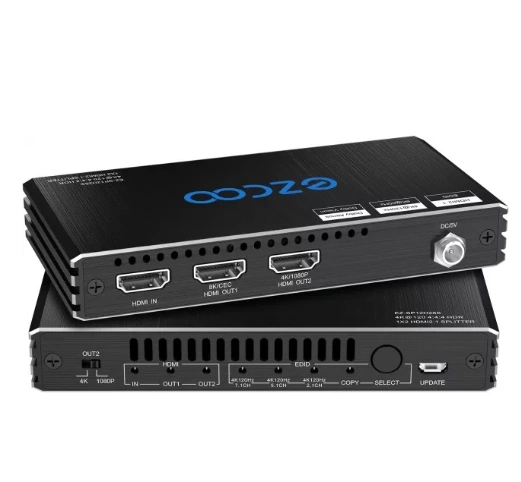

EZ-SP12H28S is a 1x2 splitter for HDMI with Ultra HD 8K@60Hz,4K@120Hz support. This splitter reliably distributes one HDMI source signal to two HDMI outputs.
Price:
USD
$139.99
$299.99
Quantity:
-
+
(38 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Technical Information
  • Firmware Update
  • Reviews

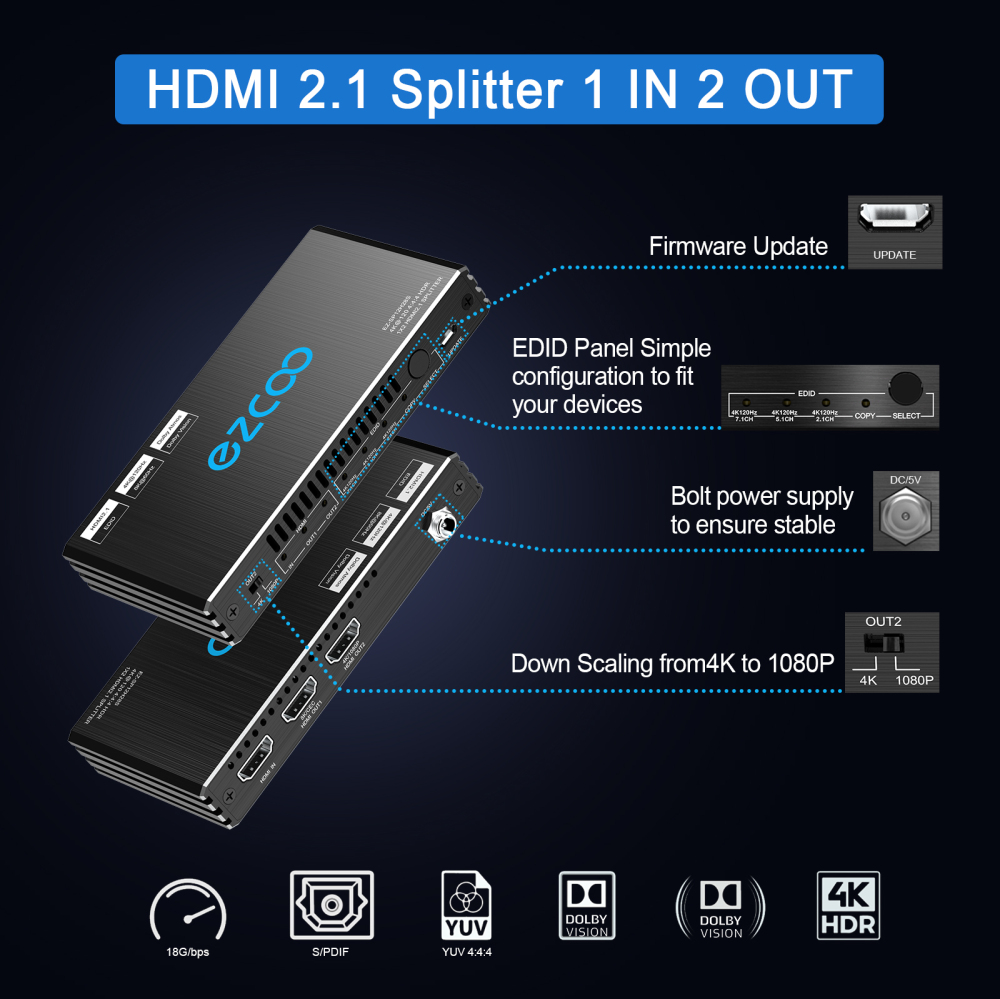

  • ⭐【8K HDMI 2.1 Splitter 2x1】 -- AVFABUL HDMI 2.1 Splitter can easily duplicate/mirror 1 HDMI source to 2 displays simultaneously. Supports HDCP 2.2 bypass. Comes with EDID management, Down scaler function. Works great with PS5, XBOX series, Nint Switch, etc..

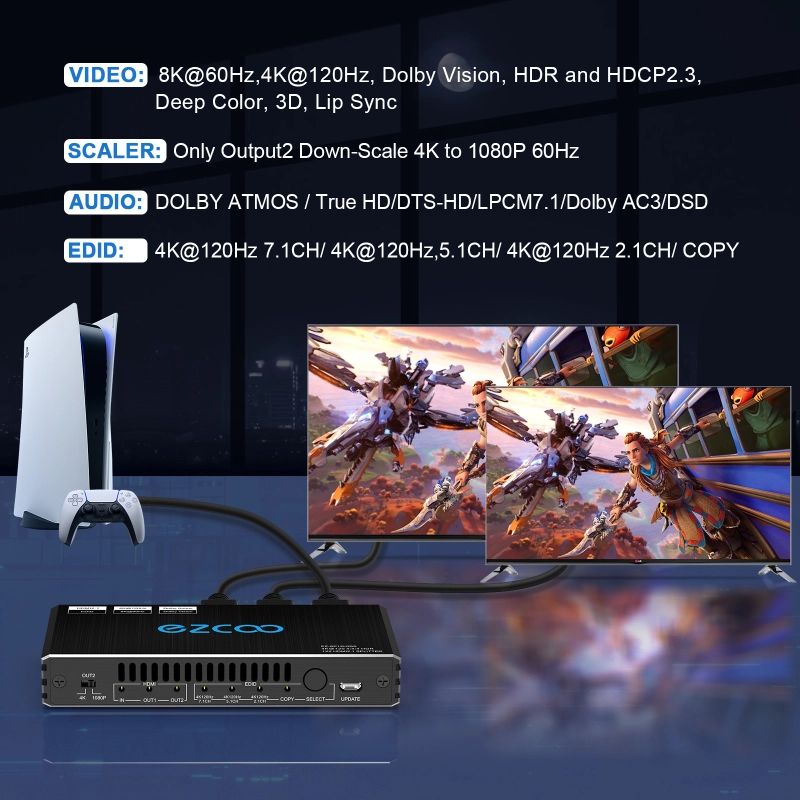

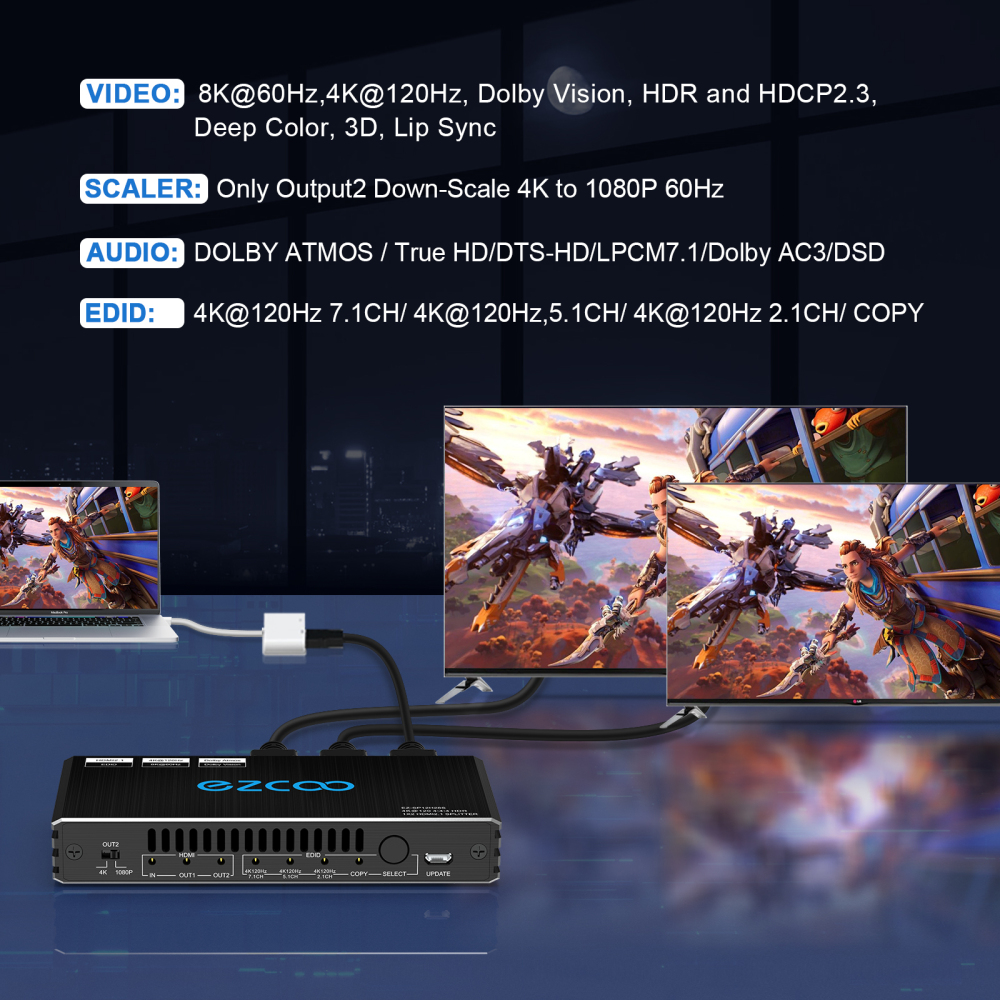

  • ⭐【Video & Audio Format】 -- Video Format - Supports resolution up to 8K@60Hz, 4K@120Hz, 1080p@240Hz, 5120x1440@120Hz, 3840x2160@60Hz,1440p@60Hz,3D, HDR, D-olby Version, HDCP2.2,HDCP2.3 bypass, IMAX DIGITAL(2K/4K), 4:4:4 8bit - Audio Format - Dolby Atmos, Digital 7.1CH, DTS:X, Dolby True HD, DTS-HD Master Audio. Soundbar supported.

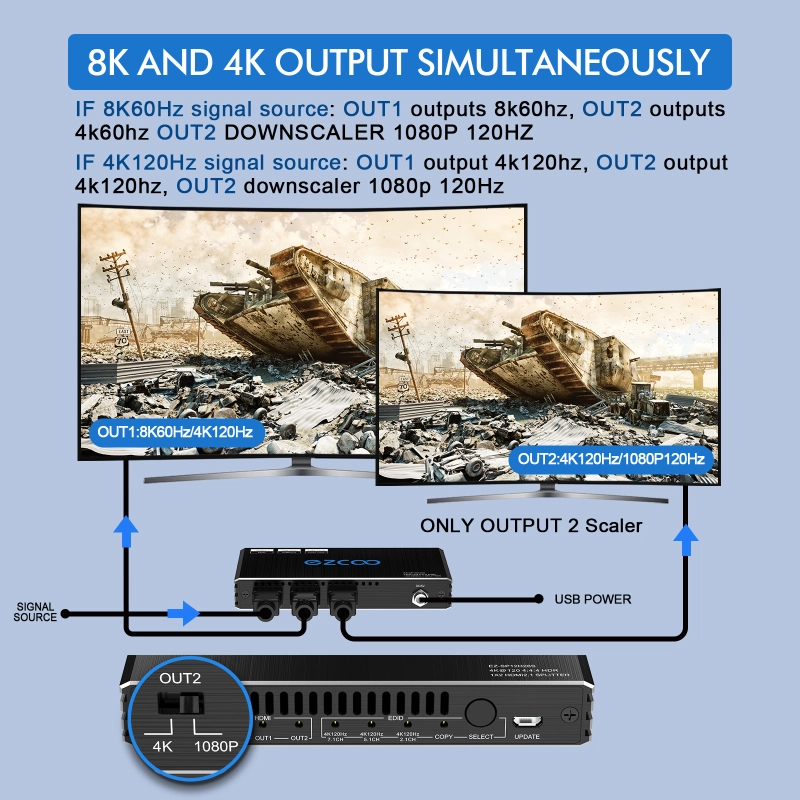

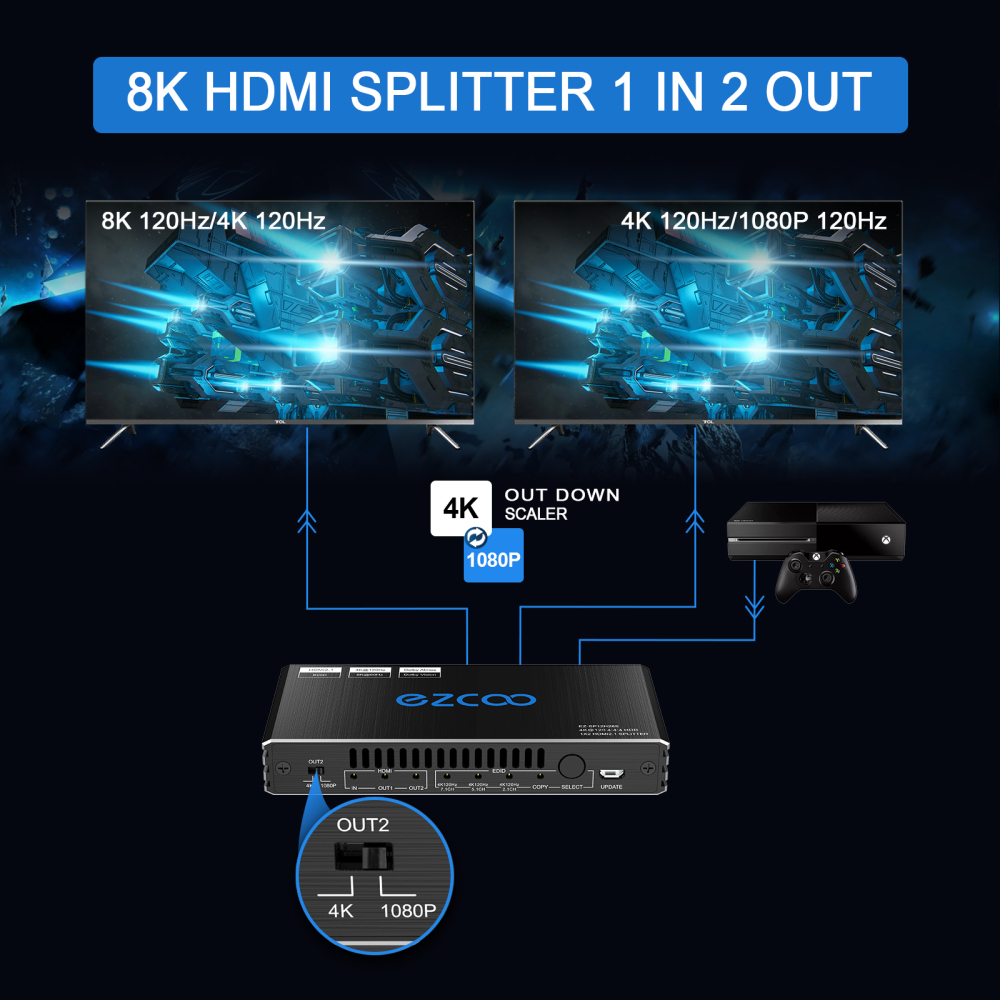

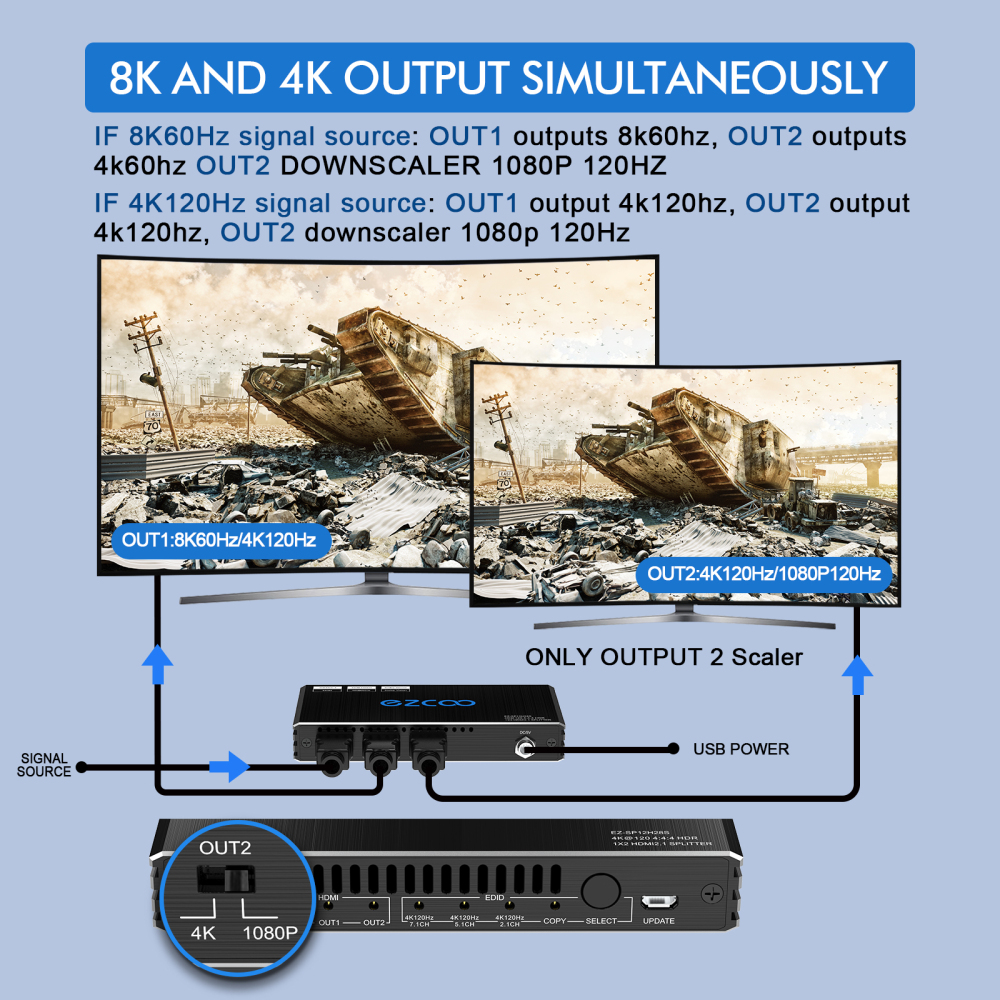

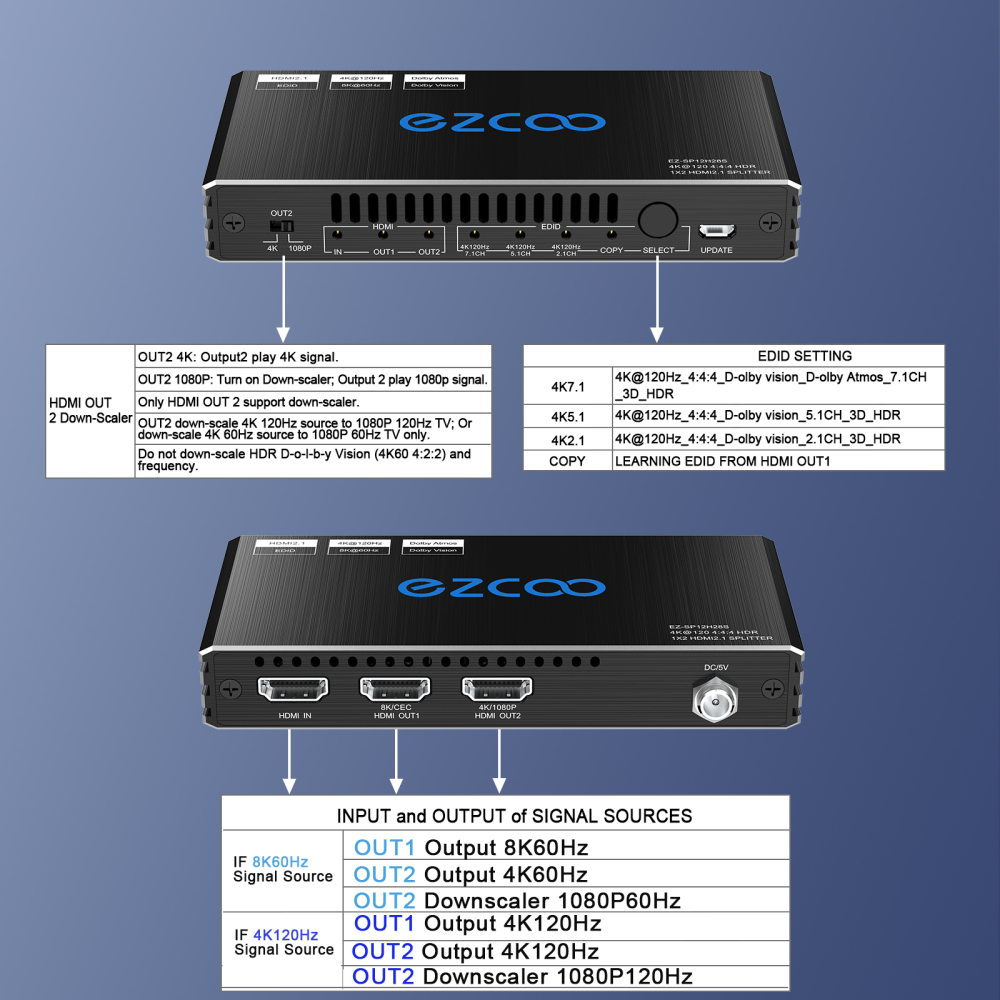

  • ⭐【Easy Usage】 -- Supports 8K&4K/4K&1080P TV work in sync: Set EDID copy mode; Connect 8K/4K TV with Splitter OUT 1,4K/1080P TV with OUT 2; Set OUT2 Scaler to 4K/1080P - HDR and Soundbar work in sync: Please set appropriate EDID according to your needs. Copy mode will read the EDID of the TV connected to OUT1.

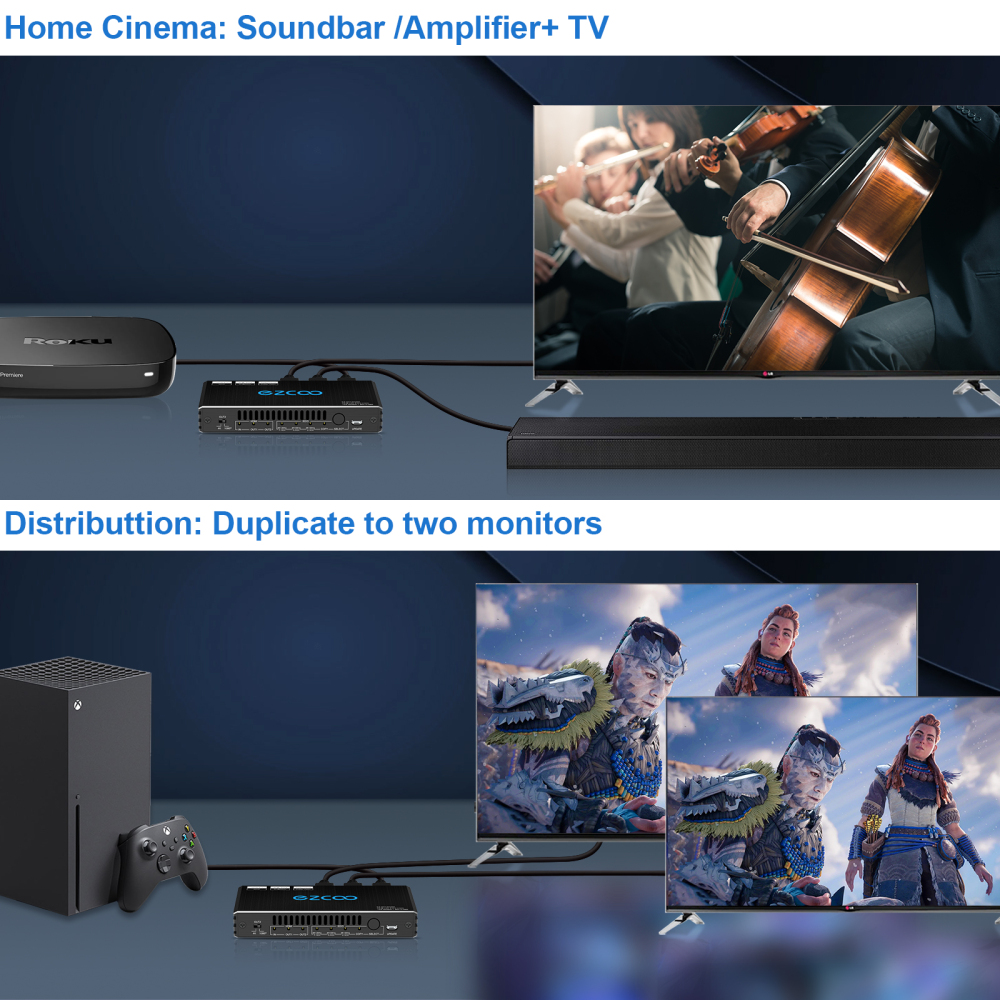

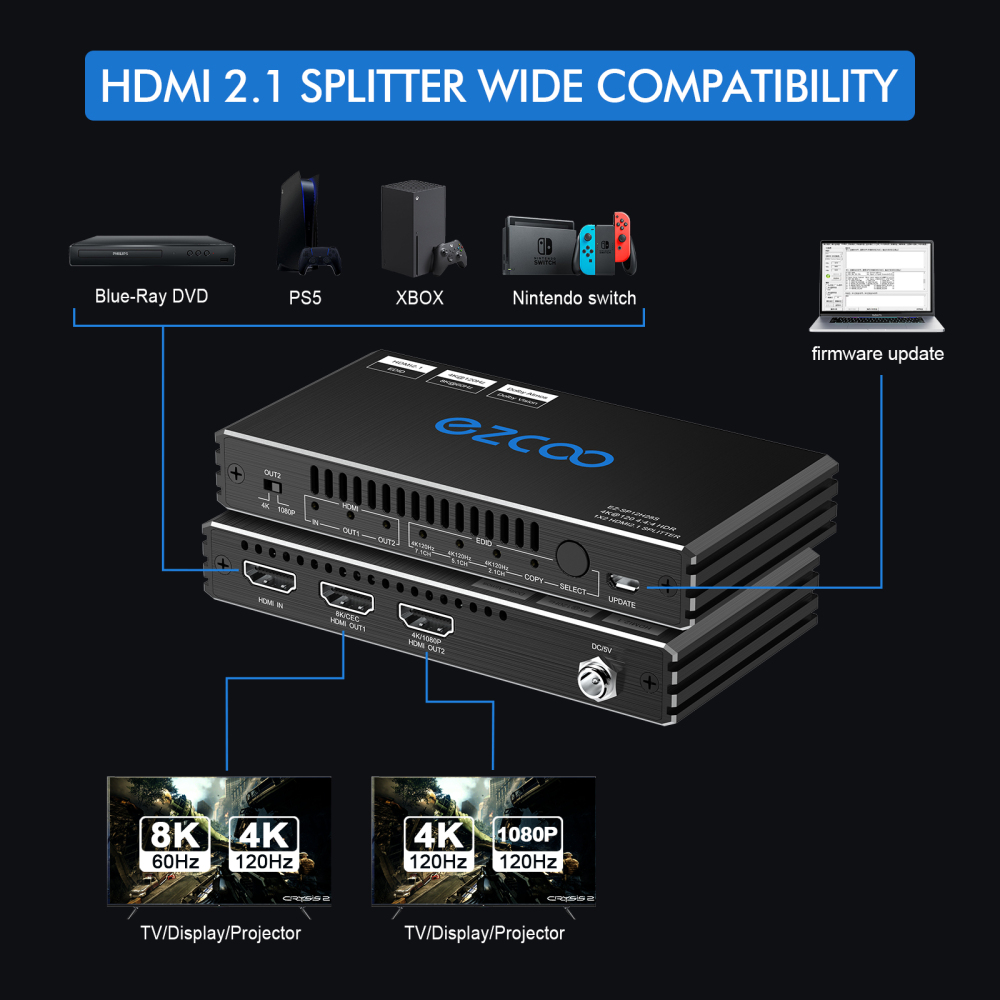

  • ⭐【Wide Compatibility】 -- 8K HDMI 2 way splitter works great with UHD TV,HDMI 2.1 HDCP 2.2/HDCP 2.3 devices, Gaming Consoles like Xbox,,PS4, PS5, Nint Switch; Streamers like Apple TV, Fire Stick, Roku. Plug and Play, No driver needed. To get both of D-olby Atmos and D-olby Vision, please make sure both TV and Receiver support them. Also Supports TV HDR video, Soundbar 7.1ch audio play together.
  • ⭐【Please NOTE】 -- Highly recommend HDMI 2.1 cable less than 10ft/3m. Does NOT support ARC, e-ARC/Sonos ARC, upscale. Does NOT downscale HDR Dolby Vision (4K60 4:2:2), does NOT convert HDR to SDR. To get both D-olby Atmos and Dolby Vision, please make sure both TV and receiver support them. This is NOT an audio down mixer.



Technical Information

HDMI video: Uncompressed HDMI 2.1,HDCP 2.3,8K@60Hz 4:4:4 8bit 48Gbps HDR, 4K*2K/1080p/1080i,24bit/30bit,36bit deep color

HDMI audio: Dolby Digital 7.1CH Audio,Dolby Atmos,Dolby TrueHD,DTS:X,DTS-HD Master

HDMI Input cable: HDMI 2.1 standard cable, ≤10m AWG26

HDMI Output cable: HDMI 2.1 standard cable, ≤15m AWG26

Max bandwidth: 1200MHz,
Max baud rate: 48Gbps

Power Adapter: Input AC 100V-240V/ 50Hz,60Hz; Output DC 5V/2A

Operating Temperature: -15 to +55℃

Operating Humidity: 5 to 90%RH (No Condensation)

Dimension: 4 x 2.9 x 0.7 in

Weight: 0.75 kg


Package Contents

1x HDMI Splitter

1x Power Adapter

1x Hook&Loop

1x User Manual

2x Reusable Cable Tie

Firmware Update
Add VRR in 4K120 EDID
Improve EDID COPY
