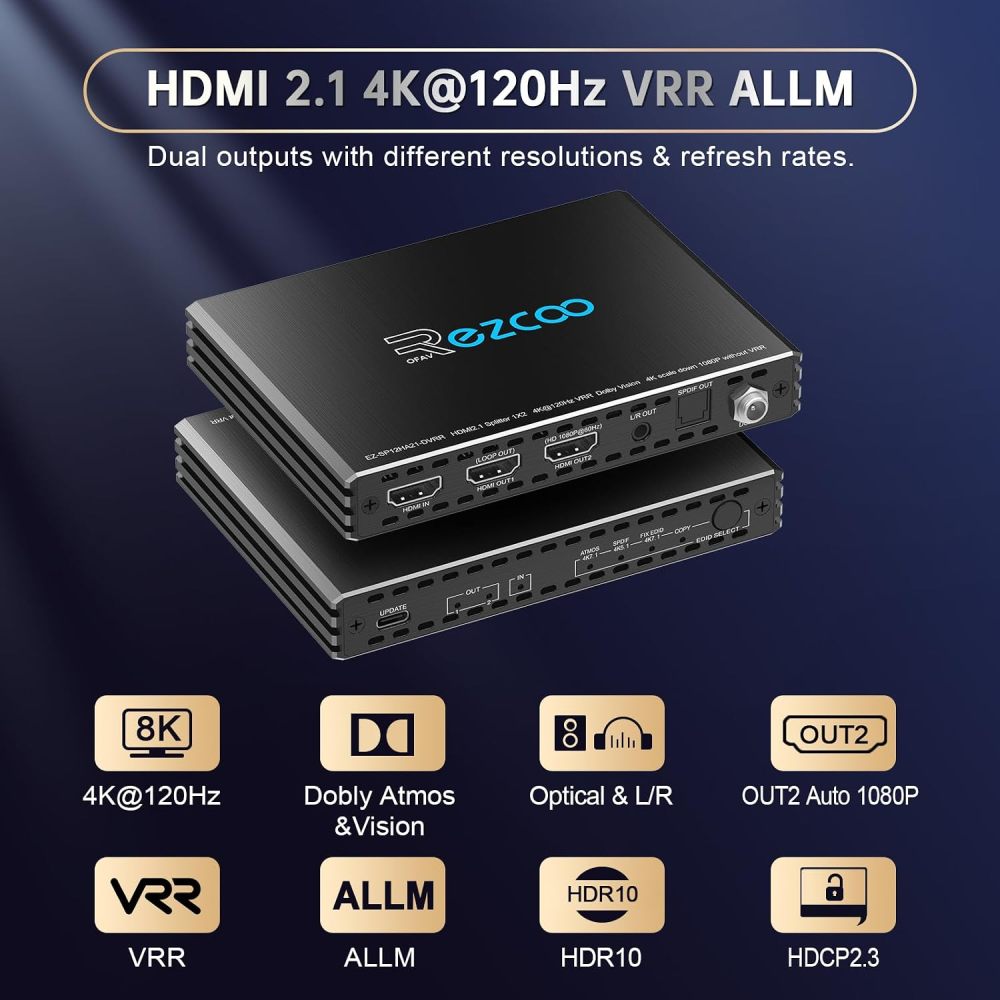

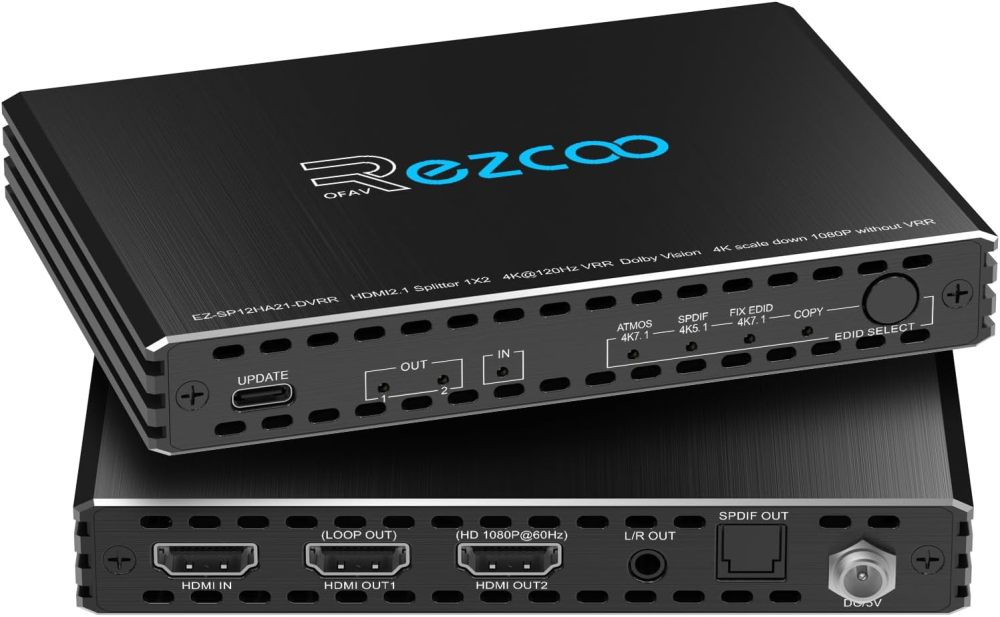

HDMI 2.1 Splitter 1 in 2 Out 4K @ 120Hz VRR ALLM Dolby Vision Atmos HDCP 2.3 1x2 HDMI Splitter with Optical & L/R Audio Out, EDID Management, 4K120 Downscale to 1080P60
SKU: SP12HA21-DVRR
1 Input, 2 Outputs, Synchronized Multi-Display Operation

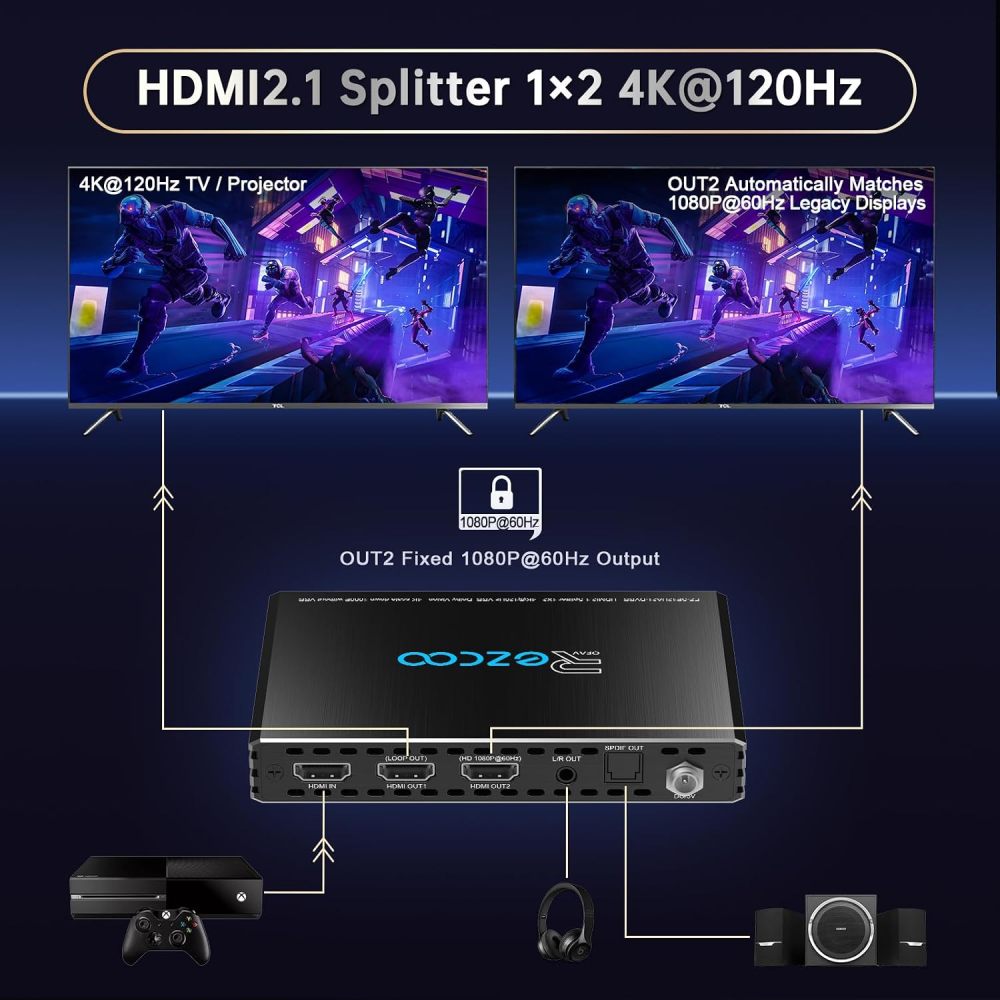

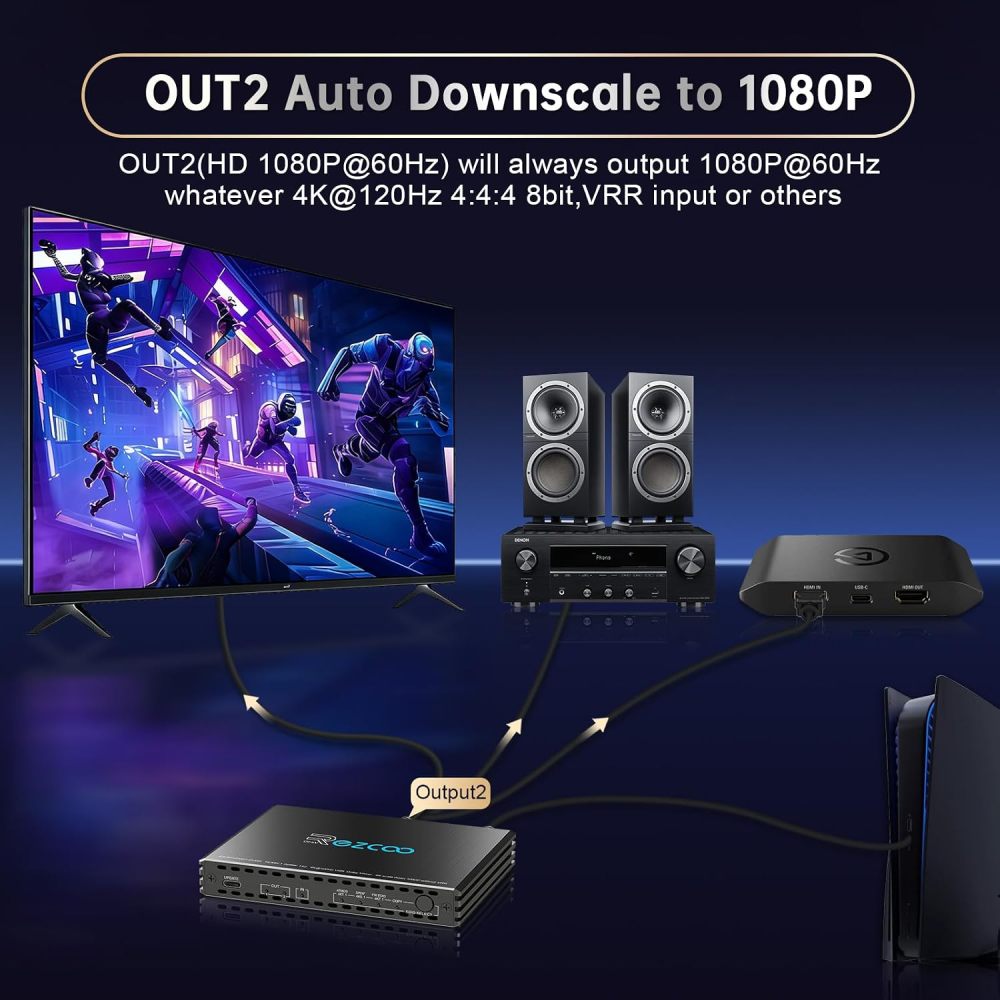

Single HDMI input routed to two output ports: Output 1 fully complies with the complete HDMI 2.1 specification, while Output 2 automatically downscales 4K signals to 1080P @ 60Hz. Compatible with legacy amplifiers, capture cards and older display equipment.
True 8K Ultra HD with VRR & ALLM Video and Audio Formats
Video Specifications: This HDMI 2.1 splitter supports a wide range of resolutions and delivers full Ultra HD performance via HDMI 2.1. It supports 4K @ 120Hz 4:4:4 8-bit, HDR10, Dolby Vision, VRR, ALLM and HDCP 2.3. It delivers cinema-grade visuals and lossless audio for gaming, home theater and media streaming.
Supported signal specs: Up to 8K@60Hz, 4K@120Hz, 5120×1440@120Hz, 1080P@240Hz, 4:4:4 8-bit, VRR, ALLM, HDR10, HDCP 2.3, Dolby Vision and 3D content.
Audio Specifications: Supports Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio and PCM 7.1 surround sound.
Diversified Audio Outputs & EDID Management

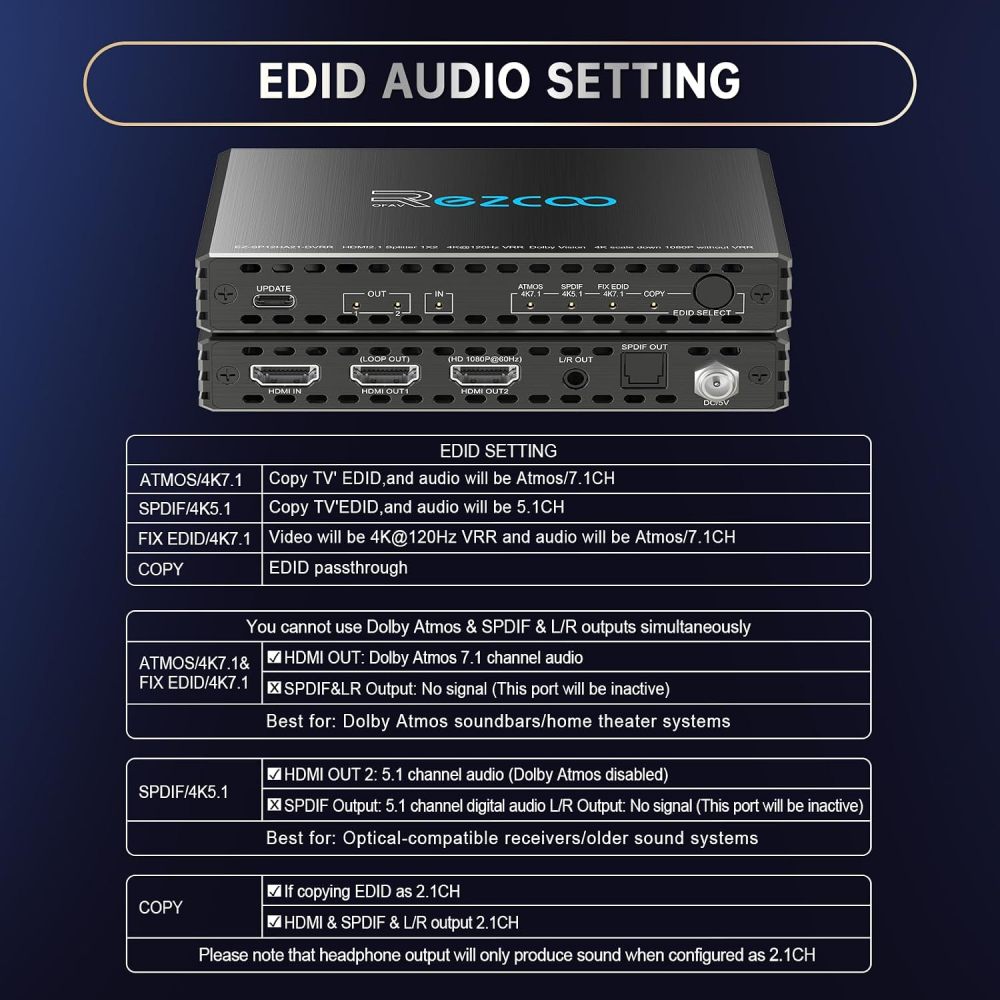

Comes with built-in optical and L/R analog audio outputs. Supports Dolby Atmos 7.1 surround, 5.1 surround and 2.1 stereo audio. Four selectable EDID modes guarantee full compatibility with televisions, soundbars and AV receivers.
Broad Compatibility

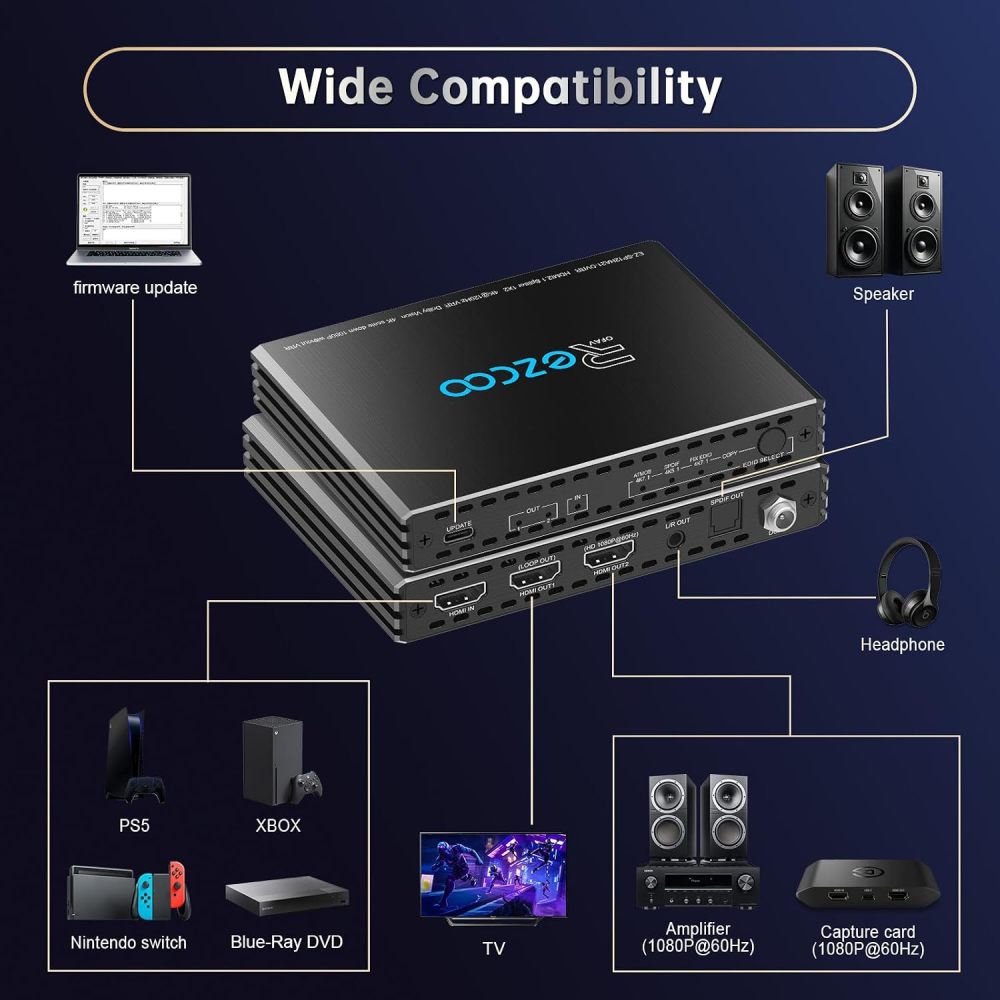

Plug-and-play design with no driver installation required. This 4K HDMI splitter works with gaming consoles and media devices including PS5, PS4, Nintendo Switch, Fire TV, Sky Q, Roku Ultra, NVIDIA Shield, Xfinity Box, Xbox One S, Xbox Series X, Apple TV, Chromecast, Google TV, and also supports game video capture.
Important Notes
Most operational issues stem from low-quality HDMI cables. We highly recommend certified HDMI 2.1 cables shorter than 3 meters. For reference, please see ASIN B0B67KQ8CM if needed.
This unit does not support bidirectional CEC for Sonos ARC/eARC systems. It cannot downscale HDR or Dolby Vision signals (4K60 4:2:2) and does not function as an HDR-to-SDR converter.
